CONSMA011-R178
| Manufacturer | |

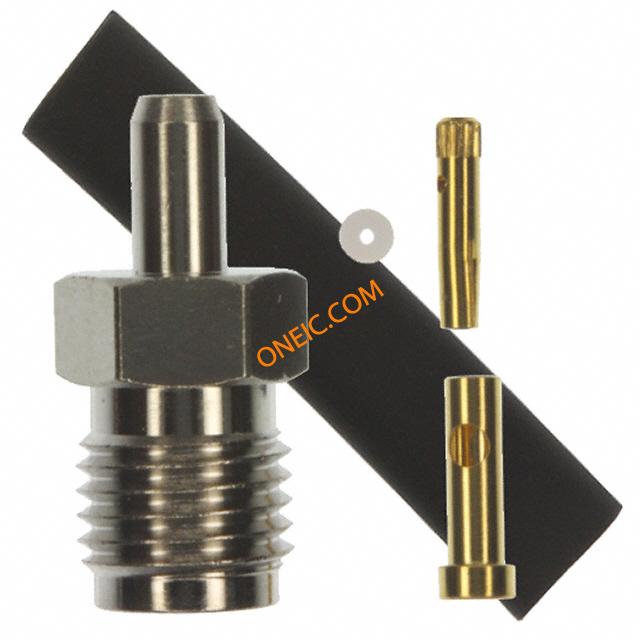

| Description | RF Connectors SMA Female Cable End Crimp - RG-178 Cable CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA Female Cable End Crimp - RG-178 Cable |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | CONSMA011R178 |
| Product Category | RF Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohms | Frequency - Max | 12.4GHz |
Mechanical
| Packaging | Bulk | Cable Type | RG-178 |
| Body Finish | Nickel | Cable Group | RG-178 |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | SMA Jack |
| Contact Finish | Gold | Fastening Type | Threaded |
| Connector Style | SMA | Contact Material | Beryllium Copper |
| Housing Material | Brass | Termination Style | Solder |
| Shield Termination | Crimp | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | ||
Product Info
| Gender | Receptacle (Female) | Features | Heat Shrink Tubing |
| Polarity | Normal | RF Family/Standard | SMA |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
