CONREVSMA014-R58
| Manufacturer | |

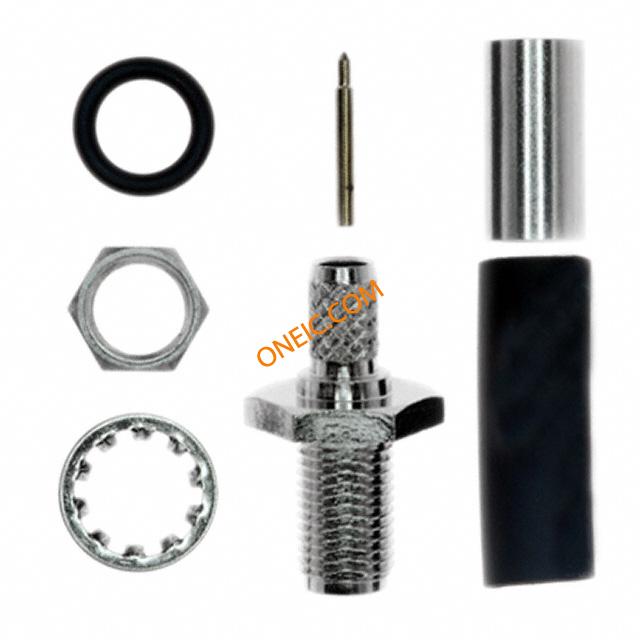

| Description | RF Connectors RPSMA Fml Blkhd RMnt Crimp, O-Ring, RG-58 CONN RP-SMA PLUG 50 OHM SOLDER RF Connectors / Coaxial Connectors RPSMA Fml Blkhd RMnt Crimp, O-Ring, RG-58 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | CONREVSMA014R58 |
| Product Category | RF Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohms | Frequency - Max | 12.4GHz |
Mechanical
| Packaging | Bulk | Cable Type | RG-58 |
| Body Finish | Nickel | Cable Group | RG-58 |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Shell Plating | Nickel | Connector Type | Jack, Male Pin |
| Contact Finish | Gold | Fastening Type | Threaded |
| Connector Style | RP-SMA | Contact Material | Brass |
| Termination Style | Solder | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Brass |
Product Info
| Gender | Receptacle (Female) | Features | Heat Shrink Tubing |
| Polarity | Reverse | RF Family/Standard | SMA |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
