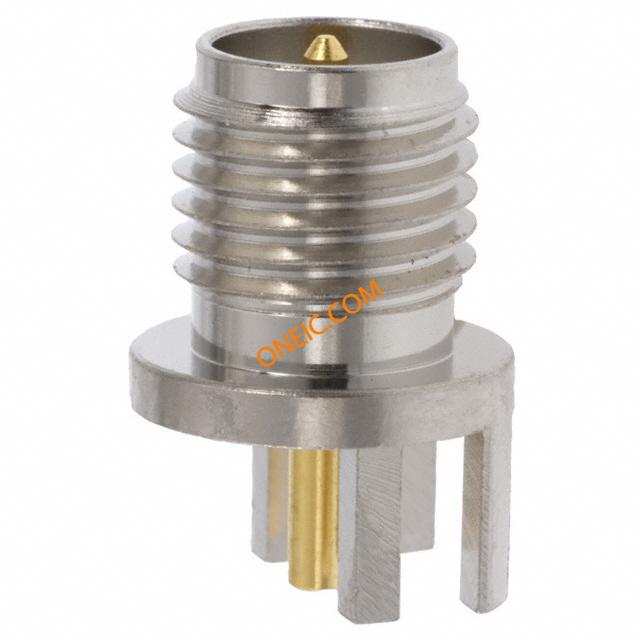

CONREVSMA003.062
| Manufacturer | |
| Description | RF コネクタ RP-SMA Fml Edge Mnt for 0.062 Thick Brd CONN RP-SMA JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors RP-SMA Fml Edge Mnt for 0.062 Thick Brd |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 50 Ohm | Impedance (Max) (Zzt) | 50 Ohm |
| Connector - Voltage Input | Solder | ||
Mechanical
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Vertical | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Connector Style | RP-SMA |
| Contact Material | Brass | Termination Style | Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Exterior Housing Color | Silver | Center Contact Material | Brass |
Product Info
| Gender | Jack | Polarity | Reverse |
| RF Family/Standard | SMA | Output Configuration | Board Edge, End Launch |
Environmental
| Ingress Protection | Solder | Operating Temperature | -65°C ~ 165°C |
