点击放大查看
NT-53F0-0428
| Manufacturer | |

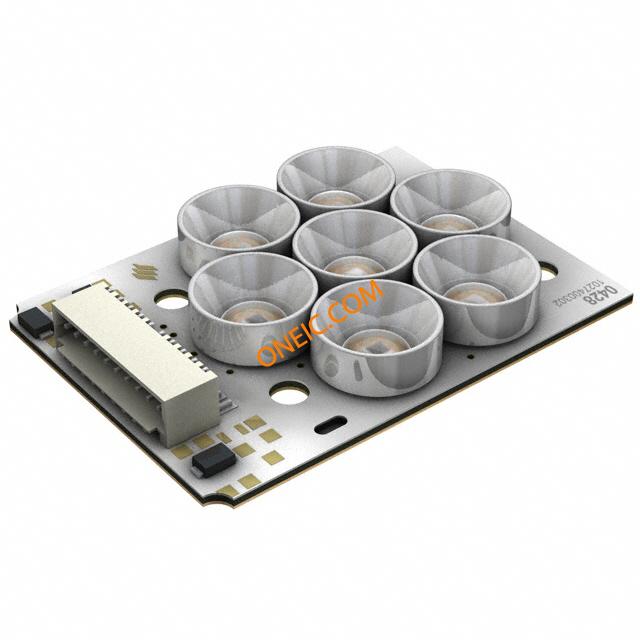

| Description | LED Lighting Modules RGB Titan Series LIGHT ENGINE TITAN RED/GRN/BLUE |
| Category |
Business
| Product | LED Light Engines | Tradename | Lamina |
| Product Category | LED Lighting Modules | Standard Package | 15 |
| Factory Pack Quantity | 15 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 6.9V Red, 11.4V Green, 10.5V Blue | Beam Angle | 62 deg |
| Luminous Flux | 435 lm, 685 lm, 183 lm | Power - Rated | 7.3 W, 12 W, 11 W |
| Current - Output | 3 x 1.05A | Driver Circuitry | Yes |
| LED Forward Current | 1.4 A | LED Forward Voltage | 6.9 V, 11.4 V, 10.5 V |
| Current Rating (Max) | 3 x 1.4A | Wavelength - Dominant | 629 nm, 535 nm, 470 nm |
Mechanical
| Size | 44.45 mm x 31.75 mm x 6.4 mm | Color | Red, Green, Blue (RGB) |
| Width | 31.75 mm | Height | 6.4 mm |
| Length | 44.5 mm | Packaging | Tray |
| Connector Usage | Yes | Illumination Color | RGB |
Product Info
| Configuration | Rectangle | Number of LEDs | 7 |
Environmental
| Luminous Flux @ Current/Temperature | 304 lm Red, 527 lm Green, 134 lm Blue | ||
