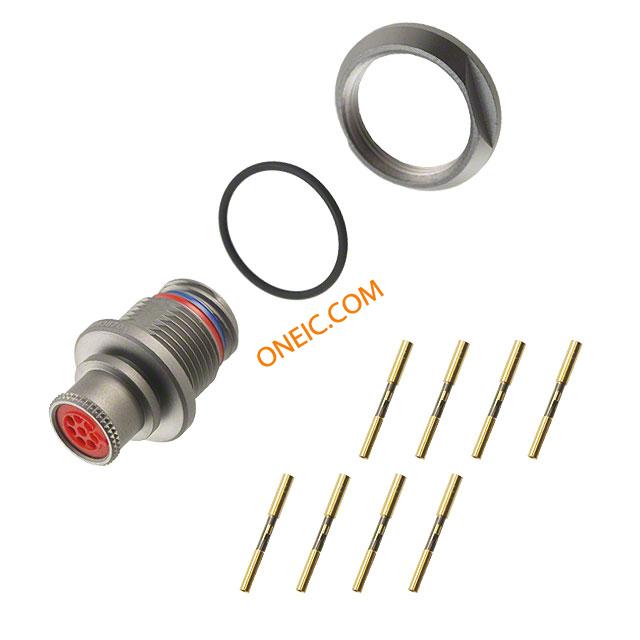

PEN.1M.308.XLMT
| Manufacturer | |
| Description | Standard Circular Connector 8P RECEPT FML CRIMP PANEL MOUNT W/NUT CONN PNL MNT RCPT 8SKT CRIMP SOCKET, 1M, BACK PANEL MOUNT, 8WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 1.3 kV | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.008 | Packaging | Bulk |
| Wire Gauge | 22 AWG to 26 AWG | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Crimp |
| Mounting Type | Panel Mount, Flange - Front Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :08-35 |
| Material - Body | :Aluminium | Contact Material | :Bronze |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | :8 | Contact Termination | :Crimp |
| Number of Positions | 8 | Shell Size - Insert | 308 |
| Shell Material, Finish | Aluminum, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Receptacle | Series | M |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 200°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
FMN.1M.308.XLCT
LEMO
Standard Circular Connector 8P STRT PLUG MALE CRIMP KNURLED GRIP CONN INLINE PLUG 8PIN CRIMP
$460.6177
Details

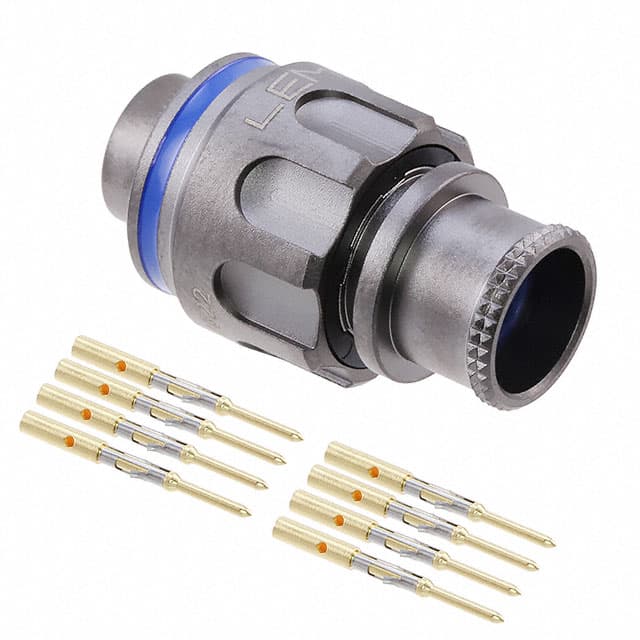

FGN.1M.308.XLCT
