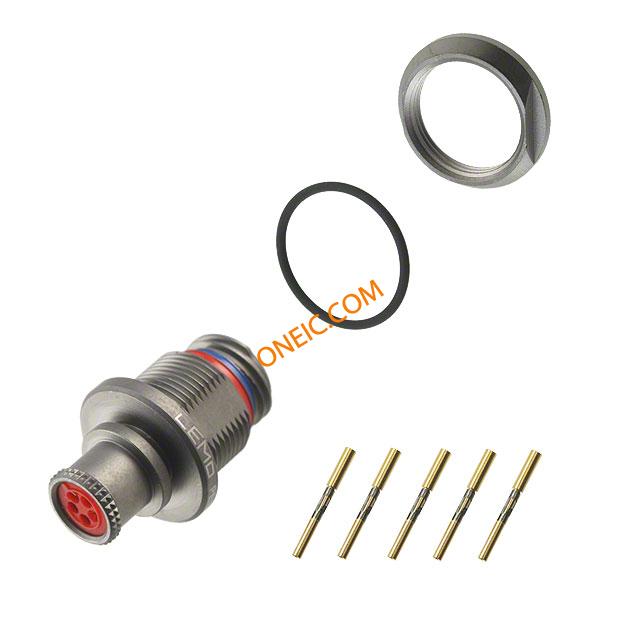

PEN.0M.305.XLMT
| Manufacturer | |
| Description | Standard Circular Connector 5P RECEPT FML CRIMP PANEL MOUNT W/NUT CONN PNL MNT RCPT 5SKT CRIMP SOCKET, 0M, BACK PANEL MOUNT, 5WAY |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 1.25 kV | Current Rating (Max) | 6.5A |
Mechanical
| Weight | 0.007 | Packaging | Bulk |
| Wire Gauge | 22 AWG to 26 AWG | Orientation | N (Normal) |
| Shell Style | Receptacle | Termination | Crimp |
| Mounting Type | Panel Mount, Flange - Front Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :- |
| Material - Body | :Aluminium | Contact Material | :Brass, Bronze |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | :5 | Contact Termination | :Crimp |
| Number of Positions | 5 | Shell Size - Insert | 305 |
| Shell Material, Finish | Aluminum, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Socket | Series | M |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 200°C |
Documents & Media
Similar Parts
BME.0M.200.XAZ
LEMO
Standard Circular Connector 13.1MM BLANKING CAP BME FIXED RECEPTACLE CONN CAP FOR .0M. RCPT IP50

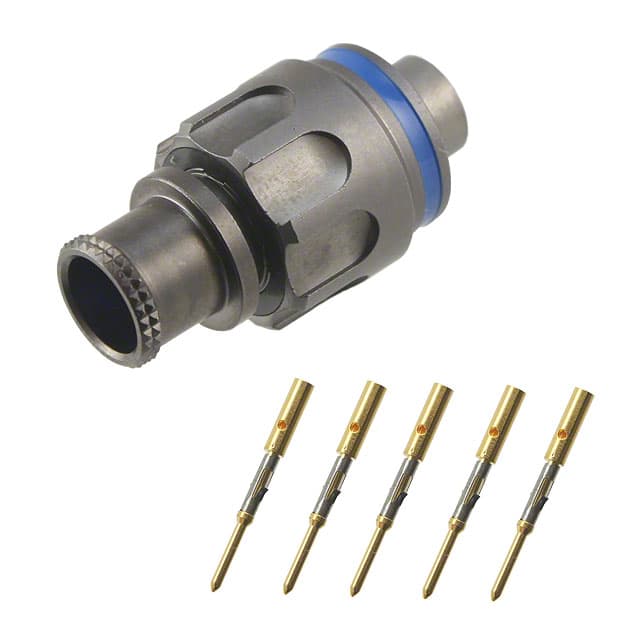

FGN.0M.305.XLCT
LEMO
Standard Circular Connector 5P STRT PLUG MALE CRIMP ARCTIC GRIP CONN INLINE PLUG 5PIN CRIMP Cable Connector,arctic grip,0M,pin,5w PLUG, 0M, IN-LINE, 5WAY, ARCTIC GRIP Lemo 0M系列 5路 IP68 直向 快速连接 Din 插头 插头, 额定6.5A 电缆安装

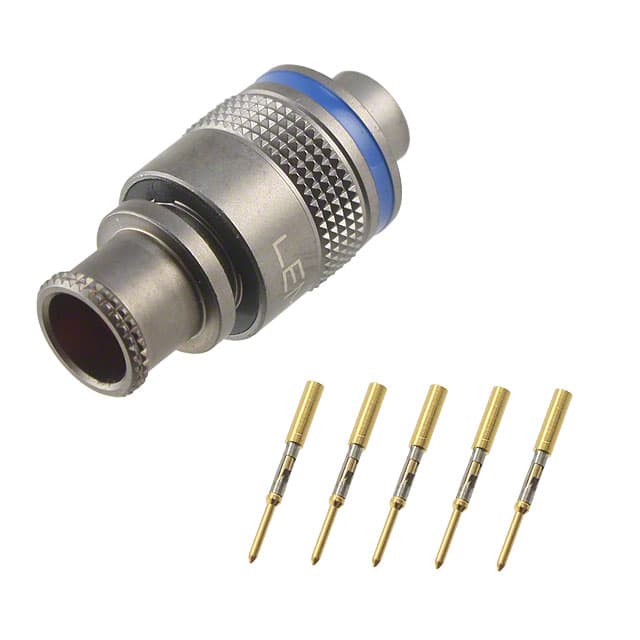

FMN.0M.305.XLCT
