HEN.0M.305.XLNP
| Manufacturer | |
| Description | Standard Circular Connector 5P RECEPT FML CRIMP PCB MOUNT POTTED CONN PNL MNT RCPT 5SKT STR PCB Receptacle,0M,PCB,Socket,5 way,M series SOCKET, 0M, PCB MOUNT, 5WAY Lemo 0M系列 5路 IP68 直向 DIN 连接器 插座, 额定6.5A 面板安装 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 1.25 kV | Current Rating (Max) | 6.5A |
| Connector - Voltage Input | Standard | ||
Mechanical
| Weight | 0.006 | Packaging | Bulk |
| Shielding | Shielded | Wire Gauge | 22 AWG to 26 AWG |
| Orientation | N (Normal) | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 8.80000 |
| Mounting Type | Panel Mount, Flange; Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :- |
| Material - Body | :Aluminium | Contact Material | Bronze |
| Housing Material | Aluminium Alloy | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 5 |
| Shell Size - Insert | 305 | Shell Material, Finish | Aluminum, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | Female | Series | 0M |
| Features | Shielded | Product Type | Connectors |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 200°C | ||
Documents & Media
Similar Parts

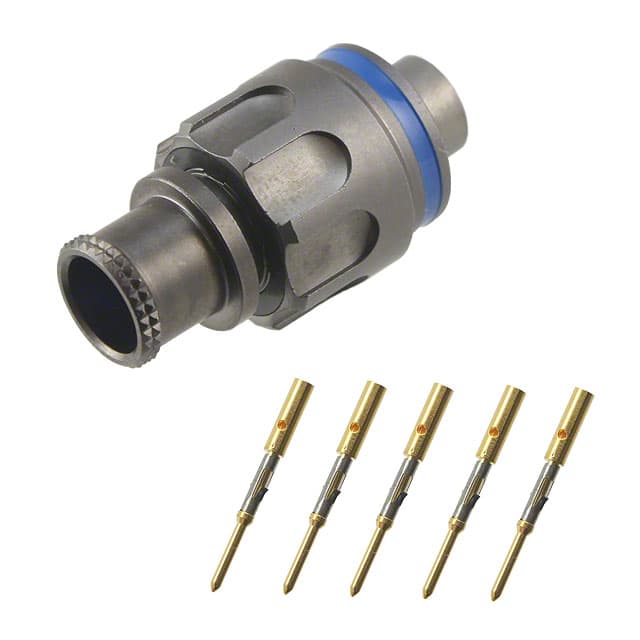

FGN.0M.305.XLCT
