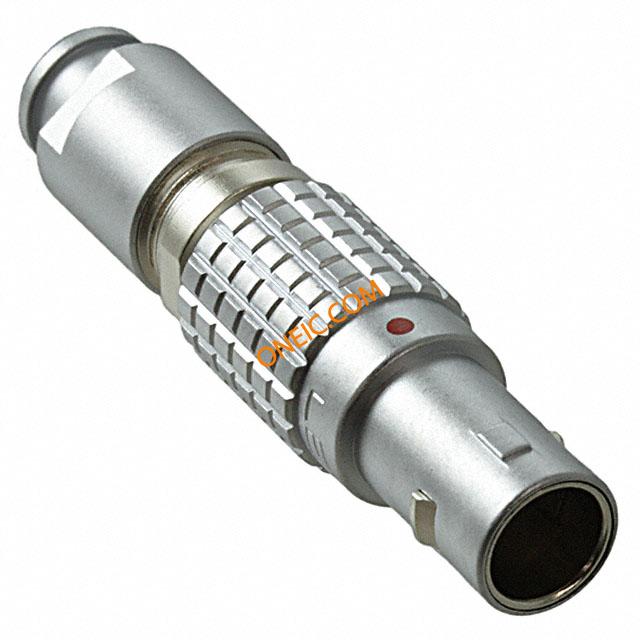

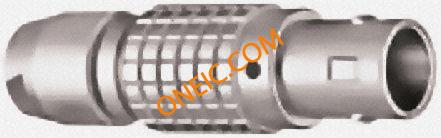

FGG.0B.307.CLAD52Z

Manufacturer	LEMO SA
Description	Circular Push Pull Connectors 7P STRT PLUG MALE SLDR D52Z COLLET CONN INLINE PLUG 7PIN SLD CUP 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, 0B, 7WAY Plug; Connector: circular; 0B; male; PIN:7; 2.5A; 700V; for cable Lemo 0B 系列 7路电缆安装直向连接器插头 , 公触点
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Lead Time	98 Days	Subcategory	Connector Circular
Product Category	Circular Push Pull Connectors	Standard Package	100

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85369010

Electrical

Voltage - Test	700V	Voltage Rating	:220V
Voltage - Working	:220V	Contact Resistance	:7.5mohm
Dielectric Strength	:19V/m	Current Rating (Max)	2.5A

Mechanical

Weight	0.009	Packaging	Bulk
Wire Gauge	28	Orientation	G
Shell Style	Plug	Termination	Solder Cup
Weight (g):	44.00000	Mounting Type	Free Hanging (In-Line)
Shell Plating	Chrome	Connector Type	Plug, Male Pins
Contact Finish	Gold	Fastening Type	Push-Pull
Mounting Style	Cable	Plating - Body	:Nickel
Shell Material	Metal	Insertion Angle	:-
Material - Body	:Brass	Contact Material	Brass
Connector - Cable	plug	Termination Style	Solder
1st Contact Gender	Male	Number of Contacts	7
Contact Termination	:Solder	Number of Positions	7
Shell Size - Insert	307	Shell Material, Finish	Brass, Chrome Plated
Contact Material - Mating	:Bronze	1st Connector Mounting Type	:Cable
Contact Finish - Post (Mating)	:Gold

Product Info

Gender	Male	Series	B
Features	Shielded	Product Type	Connectors
Adapter Series	0B	Number of Units	1

Environmental

Mating Cycles	:5000	NEMA Frame Size	:IP50
Ingress Protection	IP50 - Dust Protected	Operating Temperature	-55°C ~ 250°C

Documents & Media

PDF Document

unipole_multipole.pdf

PDF Document

Unipole&Multipole Connector Catalog

PDF Document

Connectors_High Voltage,Current Catalog

PDF Document

FGG.0B.307.CLAD52Z

PDF Document

1789410.pdf

PDF Document

unipole_multipole-9707.pdf
