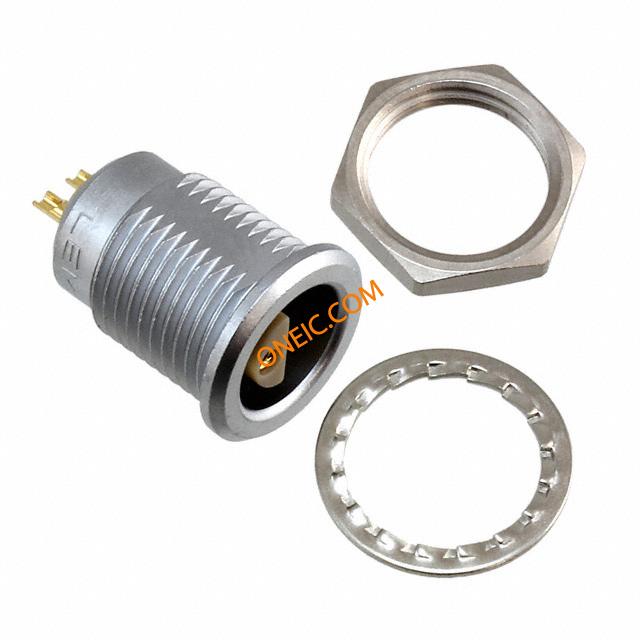

ERA.1S.302.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors CONN PNL MNT RCPT 2SKT SLD CUP Device socket, S-series 2-pin Poles=2, ERA.1S.302.CLL, Lemo |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Number of Poles | 2 | Current Rating (Max) | 15A |
| Current Rating - Appliance Inlet | 9 | Voltage - Protection Level (VP) (2416) | IP 50 |
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 8.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets and Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Metal |
| Locking Feature | Push-Pull | Contact Material | CuNi+Au |
| Housing Material | Brass (CuZn) | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Size - Insert | 302 |
| 1st Connector Gender | Female | Shell Material, Finish | Brass, Chrome Plated |
Product Info
| Design | Panel-mount female receptacle | Series | S |
| Features | Shielded | Product Type | Connectors |
| Connection Method | 0.5 | ||
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
