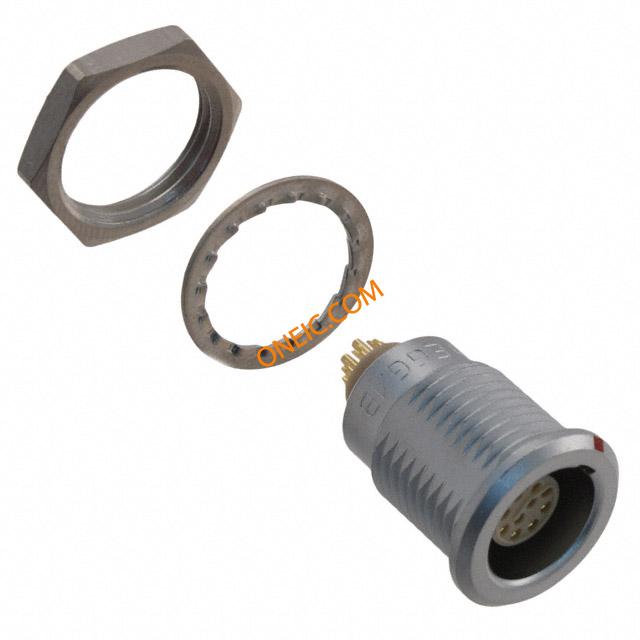

EGG.1B.310.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 1 10-PIN FEMALE SLDR CONN PNL MNT RCPT 10SKT SLD CUP 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL MOUNT, 1B, 10WAY Socket; Connector: circular; 1B; female; PIN:10; 2.5A; 1.5kV Device socket, B-series 10-pin Poles=10, EGG.1B.310.CLL, Lemo Lemo 1B 系列 10路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 1.5kV | Voltage Rating | :300V |
| Contact Resistance | :5.3mohm | Dielectric Strength | :19V/m |
| Current Rating (Max) | 2.5A | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Nickel | Insertion Angle | :310 |
| Material - Body | :Brass | Contact Material | :- |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 10 |
| Contact Termination | :Solder | Number of Positions | 10 |
| Shell Size - Insert | 310 | Shell Material, Finish | Brass, Chrome Plated |
| Contact Material - Mating | :Bronze | 1st Connector Mounting Type | :Panel |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
| Adapter Series | 1B | Number of Units | 1 |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
