点击放大查看

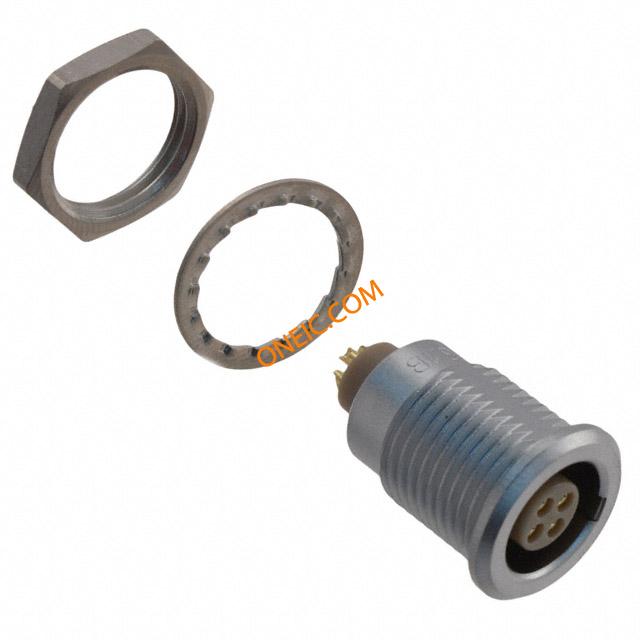

EGG.1B.304.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 1 4-PIN FEMALE SLDR CONN PNL MNT RCPT 4SKT SLD CUP 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Device socket, B-series 4-pin Poles=4, EGG.1B.304.CLL, Lemo Lemo 1B 系列 4路 面板安装 直向 连接器 插座 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Number of Poles | 4 | Current Rating (Max) | 10A |
| Current Rating - Appliance Inlet | 6 | Voltage - Protection Level (VP) (2416) | IP 50 |
Mechanical
| Outline | 1 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Locking Feature | Push-Pull |
| Contact Material | CuNi+Au | Housing Material | Brass (CuZn) |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 304 |
| 1st Connector Gender | Female | Shell Material, Finish | Brass, Chrome Plated |
Product Info
| Design | Panel-mount female receptacle | Gender | Female |
| Series | B | Features | Shielded |
| Main Purpose | Shielded | Product Type | Connectors |
| Connection Method | 0.34 | Output Configuration | Panel Mount, Bulkhead - Rear Side Nut |
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
