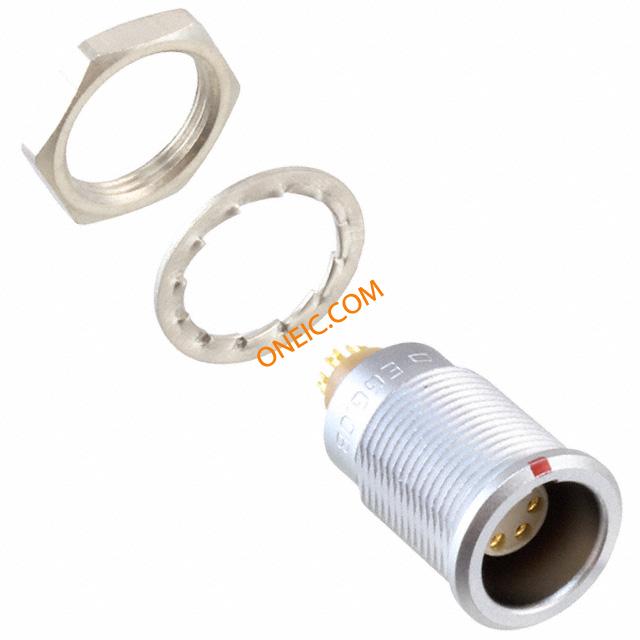

EGG.0B.306.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P STRAIGHT FEMALE PNL MNT SOLDER CONN PNL MNT RCPT 6SKT SLD CUP 6 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR CONN, RECEPTACLE, 6 WAY, PANEL Socket; Connector: circular; 0B; female; PIN:6; 2.5A; 650V Device socket, B-series 6-pin Poles=6, EGG.0B.306.CLL, Lemo Lemo 0B 系列 6路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 650V | Current Rating (Max) | 2.5A |
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Wire Gauge | 28 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 52.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Metal |
| Material - Body | :Brass | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 6 | Contact Termination | :Solder |
| Number of Positions | 6 | Shell Size - Insert | 306 |
| Shell Material, Finish | Brass, Chrome Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
| Adapter Series | 0B | Number of Units | 1 |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
