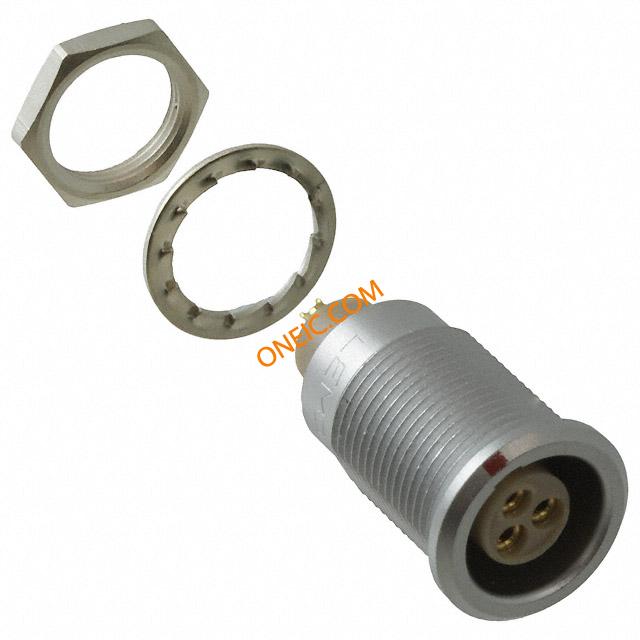

EGG.0B.303.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 0 3-pin FEMALE SLDR CONN PNL MNT RCPT 3SKT SLD CUP 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL MOUNT, 0B, 3WAY Socket; Connector: circular; 0B; female; PIN:3; 8A; 900V; soldering Device socket, B-series 3-pin Poles=3, EGG.0B.303.CLL, Lemo Lemo 0B 系列 3路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 30 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 900V | Voltage Rating | :420V |
| Voltage - Working | :400V | Contact Resistance | :7.5mohm |
| Dielectric Strength | :19V/m | Current Rating (Max) | 8A |
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Chrome | Insertion Angle | :303 |
| Material - Body | :Brass | Contact Material | :- |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 3 |
| Contact Termination | :Solder | Number of Positions | 3 |
| Shell Size - Insert | 303 | Shell Material, Finish | Brass, Chrome Plated |
| Contact Material - Mating | :Bronze | 1st Connector Mounting Type | :Panel |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
| Adapter Series | 0B | Number of Units | 1 |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
PDF Document
Online Document
PDF Document
PDF Document
PDF Document
