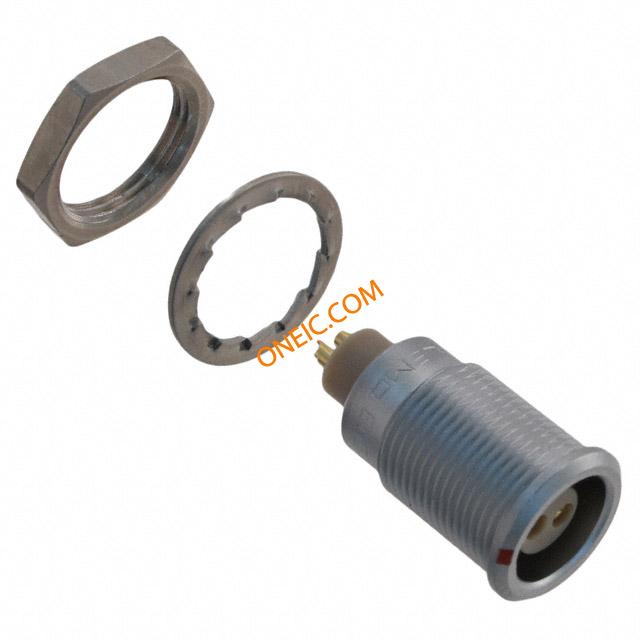

EGG.0B.302.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 0 2-PIN FEMALE SLDR CONN PNL MNT RCPT 2SKT SLD CUP 2 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR CONNECTOR, RCPT, 2 WAY, PANEL Socket; Connector: circular; 0B; female; PIN:2; 10A; 1.05kV Device socket, B-series 2-pin Poles=2, EGG.0B.302.CLL, Lemo Lemo 0B 系列 2路 面板安装 直向 连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 45 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 1.05kV | Voltage Rating | :460V |
| Voltage - Working | :430V | Contact Resistance | :4.1mohm |
| Dielectric Strength | :19V/m | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.003 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 44.60000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Chrome | Insertion Angle | :302 |
| Material - Body | :Brass | Contact Material | :- |
| Package Quantity | 3 | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 2 | Contact Termination | :Solder |
| Number of Positions | 2 | Shell Size - Insert | 302 |
| Shell Material, Finish | Brass, Chrome Plated | Contact Material - Mating | :Bronze |
| 1st Connector Mounting Type | :Panel | Contact Finish - Post (Mating) | :Gold |
Product Info
| Spg | 3 | Gender | Female |
| Series | B | Features | Shielded |
| Product Type | Connectors | Adapter Series | 0B |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
