HX 50-P
| Manufacturer | |
| Description | SENSOR CURRENT 50A -/+15V MOD Current transformer ± 150 A, HX 50-P, LEM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Output | ±4V | Accuracy | ±1% |
| Frequency | 50kHz | Linearity | ±1% |
| Sensor Type | Open Loop Hall Effect | Current Ratio | 50 A |
| Response Time | 3µs | Voltage Rating | ±4 V or ±0.625 V @ nominal primary current, RL = 10 kOhm TA = 25 °C |
| Current - Supply | 15mA | Voltage - Supply | -15 V ~ 15 V |
| Current - Sensing | 50A | Number of Channels | 1 |
| Voltage - Secondary | 3 kV | Voltage - Supply (Min) | ±15 V (±5 %) |
Mechanical

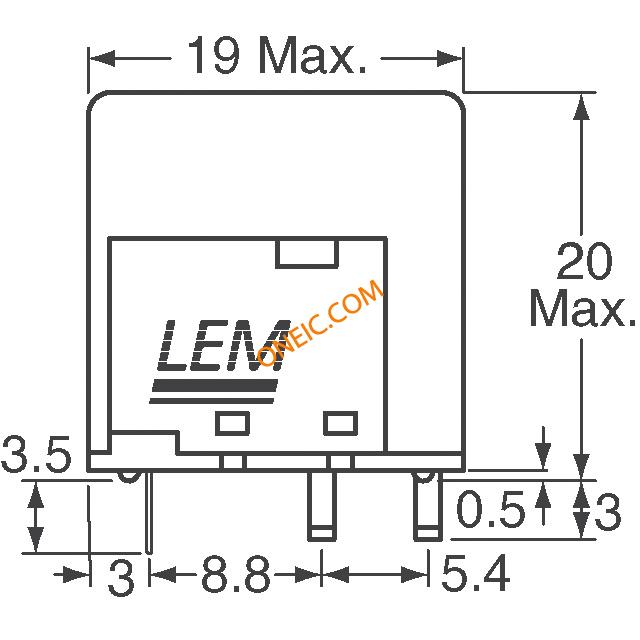

| Size | 19 x 15.4 x 20 mm | Height | 20 |
| Length | 19 | Bandwidth | DC...50 kHz |
| Packaging | Tray | Polarization | Bidirectional |
| Mounting Type | Through Hole | Package / Case | Module |
Product Info
| For Measuring | AC/DC | Measuring Range | ±150 A |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
PDF Document
