HTB 100-TP
| Manufacturer | |
| Description | SENSOR CURRENT 100A TH Current transformer ± 300 A, HTB 100-TP, LEM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Electrical
| Output | ±4V | Accuracy | ±1% |
| Frequency | 50kHz | Sensor Type | Open Loop Hall Effect |
| Current Ratio | ±300 A | Response Time | 3 µs |
| Voltage Rating | Uout: ±4 V | Voltage - Supply | -12 V ~ 15 V |
| Current - Sensing | ±100A | Voltage - Primary | Yes |
| Voltage - Secondary | 2.5 kV | Voltage - Supply (Min) | ±12...15 V (±5%) |
Mechanical

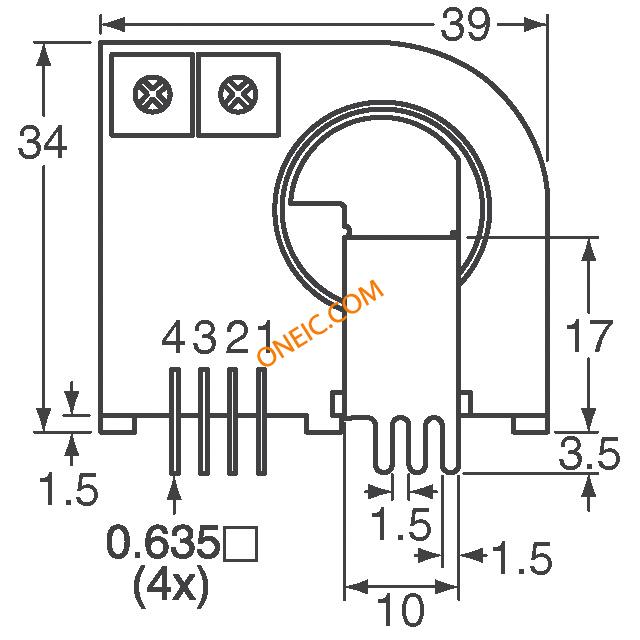

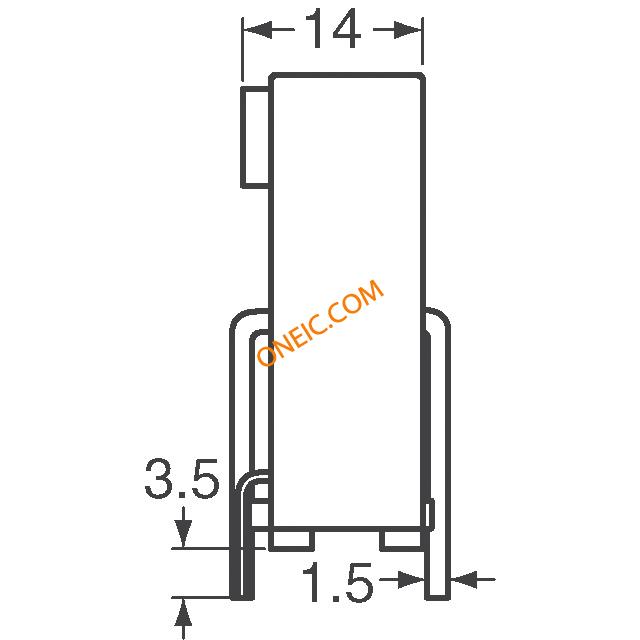

| Size | 39 x 14 x 34 mm | Height | 34 |
| Length | 39 | Bandwidth | DC...50 kHz |
| Packaging | Tray | Polarization | Bidirectional |
| Mounting Type | PCB | ||
Product Info
| Measuring Range | ±300 A | ||
Environmental
| Operating Temperature | -20°C ~ 80°C | ||
Documents & Media
PDF Document
