HAIS 100-P
| Manufacturer | |
| Description | SENSOR CURRENT 100A 5V MOD CURRENT TRANSDUCER Current transformer, HAIS 100-P, LEM LEM 电流传感器, ±300 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 6 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85043121 | Material Flammability Rating | :UL 94-V0 |
Electrical
| Output | Ratiometric, Voltage | Accuracy | ±1% |
| Frequency | 50kHz | Linearity | :± 0.5% |
| Sensor Type | Open Loop Hall Effect | Response Time | :5µs |
| Frequency - Max | :50kHz | Frequency - Min | :0Hz |
| Current - Output | 22mA | Current - Supply | 19mA |
| Voltage - Supply | 5V | Current - Sensing | 100A |
| Number of Channels | 1 | Current - Modulation | :DC, AC, Pulsed, Mixed |
| Current Rating (Max) | :100A | Voltage - Input (Min) | :-300A to 300A |
| Current - DC Forward (If) (Max) | :DC, AC, Pulsed, Mixed | ||

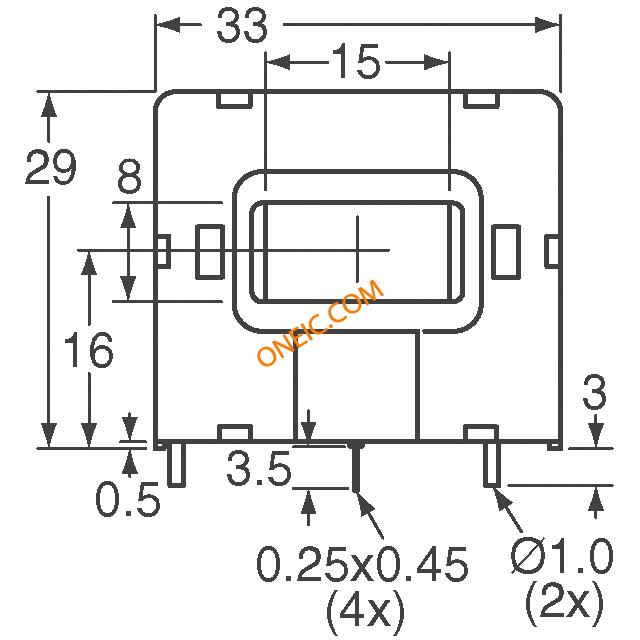

Mechanical
| Depth | :14mm | Width | :33mm |
| Length | :29mm | Weight | :20g |
| Packaging | Tray | Polarization | Bidirectional |
| Mounting Type | Through Hole | Package / Case | Module |
| Material Finish | :- | ||
Product Info
| Series | :HAIS | Function | :Electronic Measurement of Currents |
| For Measuring | AC/DC | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | Power Dissipation @ Temperature Rise | :22mA |
