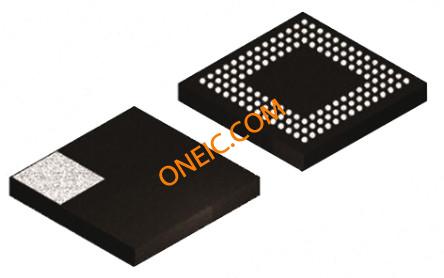

LCMXO2-1200ZE-1MG132C
| Manufacturer | |
| Description | FPGA - Field Programmable Gate Array 1280 LUTs 105 I/O 1.2V -1 SPD CPLD MachXO2 Family 1.2V 132-Pin CSBGA Tray IC CPLD 640MC 10.21NS 132CSBGA PLD,MachXO2,1280LUTs,1.2V,csBGA132 PLD, 1280 LUTS, MACHXO2, 132CSBGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MachXO2 | Standard Package | 360 |
| Factory Pack Quantity | 360 | Standard Package Name | BGA |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423190 | Rad Hardened | No |
Electrical
| RAM Size | 65536 | Frequency | :104MHz |
| Memory Size | 138 kbit | Memory Type | Flash |
| Number of I/O | 105 | Voltage Rating | 1.14 V |
| Circuit Pattern | :FLASH | Frequency - Max | 104 MHz |
| Current - Supply | 56 uA | Voltage - Supply | 1.14 V to 3.465 V, 2.375 V to 3.465 V |
| Propagation Delay | 10.21ns | Program Memory Type | Flash |
| Delay Time tpd(1) Max | 10.21ns | Voltage - Supply (Min) | 1.26 V |
| Delay Time - Propagation | :2.79ns | Voltage Supply - Internal | 1.14 V ~ 1.26 V |
| Propagation Delay tpLH / tpHL (Max) | 11.35 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 8mm | Height | 1.1mm |
| Length | 8mm | Weight | 0.0002 |
| Packaging | Tray | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :132 | Package / Case | csBGA-132 |
| Package Cooled | CS BGA | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 8 | Package Quantity | CSBGA |
| Size / Dimension | 8 x 8 x 1.1mm | Number of Positions | 132 |
| Shell Size - Insert | 1.1(Max) | Supplier Device Package | 132-CSPBGA (8x8) |
Product Info
| Series | LCMXO2-1200ZE-1MG | DELETED | Compliant |
| Embedded | 64 Kbit | Programmable | Yes |
| Distributed RAM | 10 Kbit | Number of Gates | 1.2 K |
| Programmable Type | In System Programmable | RF Family/Standard | MachXO2 |
| User Configuration | 64 Kbit | Number of LABs/CLBs | 160 |
| DigiKey Programmable | Yes | Number of Macrocells | 640 |
| In System Programming | Yes | Printed Circuit Board | 132 |
| Number of Inputs and Type | 105 | Number of Logic Elements/Cells | 1280 |
| Number of Logic Elements/Blocks | 160 | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 85C | ||
