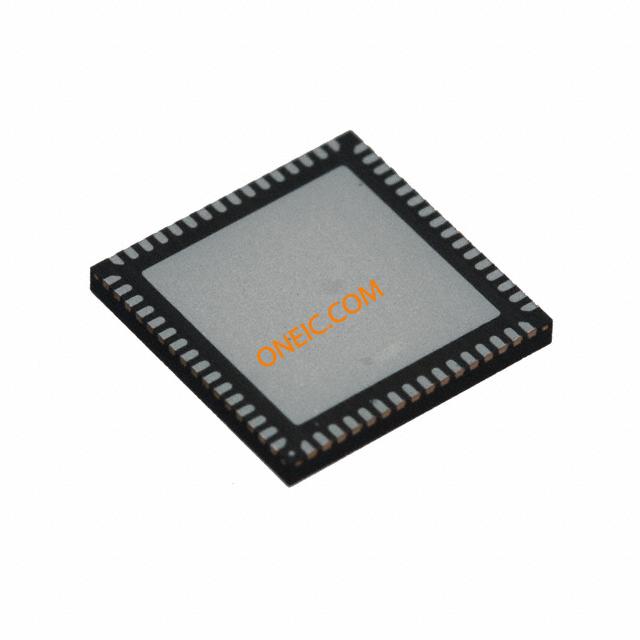

ISPPAC-CLK5410D-01SN64C
| Manufacturer | |
| Description | Phase Locked Loops - PLL 3.3V 10 diff. outputs Zero Delay Programmable PLL Clock Generator Single 40MHz to 400MHz 64-Pin QFN EP IC BUFFER FANOUT 10OUTPUT 64QFNS Clock Drivers & Distribution 3.3V 10 diff. outputs |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 260 | Factory Pack Quantity | 800 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| PLL | Yes with Bypass | Input | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL |
| Output | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL | Current Ratio | 2:10 |
| Voltage Rating | 3 | Frequency - Max | 400 MHz |
| Frequency Range | 12.5 MHz to 400 MHz | Oscillator Type | Yes/No |
| Current - Supply | 99 | Voltage - Supply | 3.6 V |
| Divider/Multiplier | Yes/No | Number of Elements | 1 |
| Ratio - Input:Output | 2:10 | Voltage - Supply (Min) | 3.6 |
| Minimum Input Frequency | 40 MHz | Differential - Input:Output | Yes/Yes |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 9 | Height | 0.88 mm |
| Length | 9 mm | Packaging | Tray |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | QFN-64 |
| Length - Overall | 9 | Package Quantity | QFN EP |
| Number of Positions | 64 | Shell Size - Insert | 0.88 |
| Supplier Device Package | 64-QFNS (9x9) | ||
Product Info
| Type | Zero Delay Programmable PLL Clock Generator | Series | CLK5410D-01SN |
| Manufacturer | Lattice | Number of Circuits | 1 |
| Output Configuration | Surface Mount | Printed Circuit Board | 64 |
Environmental
| Operating Temperature | + 85 C | ||
