ICE40HX1K-CB132
| Manufacturer | |
| Description | IC FPGA HX 1280LUTS 1.2V 132CBGA IC FPGA 95 I/O 132CBGA iCE40HX1K-CB132, FPGA iCE40 HX 1280 Cells, 64kbit, 160 Blocks, 1.2V 132-Pin CSBGA FPGA - Field Programmable Gate Array iCE40HX 1280 LUTs, 1.2V Ultra Low-Power FPGA, 1280 LUTS, 1.2V, HX, 132CSBGA FPGA - Field Programmable Gate Array iCE40HX 1280 LUTs 1.2V Ultra Low-Power |
| Category |
Business
| Product | iCE40HX | Standard Package | 384 |
| Factory Pack Quantity | 384 | ||
Compliance
| RoHS | Compliant | Tariff No | 85423190 |
Electrical
| Speed | :0 | Memory | 64 kbit |
| Clock Rate | :PLL | Memory Size | 64 kbit |
| Number of I/O | 95 | FPGA Registers | 1280 |
| Voltage - Core | :1.14V | Voltage Rating | 1.14 V |
| Frequency - Max | 533 MHz | Voltage - Supply | 1.14 V ~ 1.26 V |
| Voltage - Supply (Min) | 1.26 V | Voltage - Supply, Digital | :3.3V |
| Voltage Supply - Internal | :1.14V to 1.26V | ||
Mechanical
| Width | 8mm | Height | 1.1mm |
| Length | 8mm | Weight | 0.0002 |
| Fan Type | :iCE40 | Packaging | Tray |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :132 | Package / Case | 132-LFBGA, CSPBGA |
| Package Cooled | CSBGA | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | 384 | Size / Dimension | 8 x 8 x 1.1mm |
| Number of Positions | 132 | Supplier Device Package | 132-CSPBGA (8x8) |
Product Info
| Series | iCE40HX1K Dev Tool | Total RAM Bits | 65536 |
| Number of Gates | 1280 | RF Family/Standard | iCE40 HX |
| Number of LABs/CLBs | 160 | Number of Macrocells | :0 |
| Number of Inputs and Type | 95 | Number of Logic Elements/Cells | 1280 |
| Number of Logic Elements/Blocks | :160 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Similar Parts

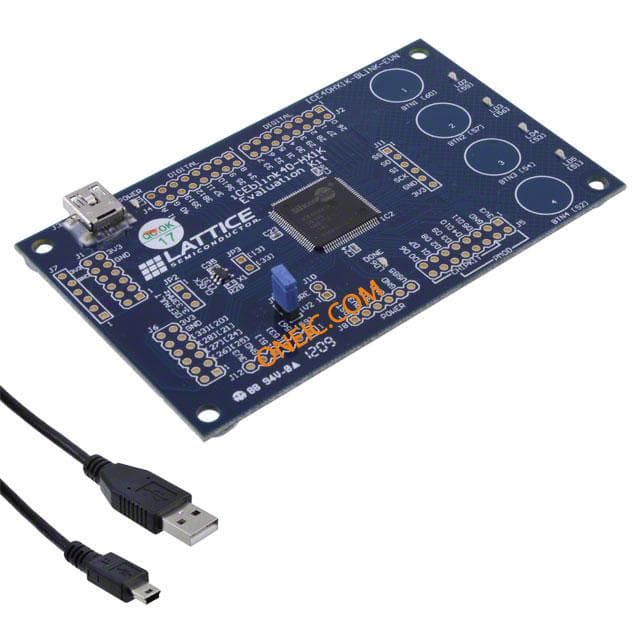

ICE40HX1K-BLINK-EVN
Lattice
プログラマブルロジック IC 開発ツール iCEblink40-HX1K Evaluation Kit Evaluation Kit Is A Low-Cost Platform For Evaluating And Developing With The Low-Power ICE40Hx1K Mobile FPGA BOARD EVAL ICEBLINK40-HX1K iCE40HX1K-BLINK-EVN, Development Kit, FPGA, Documentation, USB Mini Cable, iCEblink40 LP1K Board Programmable Logic IC Development Tools iCEblink40-HX1K Evaluation Kit KIT, EVAL, ICEBLINK40-HX1K
ICE40LP1K-BLINK-EVN
Lattice Semiconductor Corporation
BOARD EVAL ICEBLINK40-LP1K iCE40LP1K-BLINK-EVN, Development Kit, FPGA, Documentation, USB Mini Cable, iCEblink40 LP1K Board Programmable Logic IC Development Tools 40-LP1K Eval Kit RoHS Compliant Evaluation Kit Is A Low-Cost Platform For Evaluating And Developing With The Low-Power ICE40LP1K Mobile FPGA KIT, EVAL, ICEBLINK40-LP1K
