28A2913-0A2
| Manufacturer | |

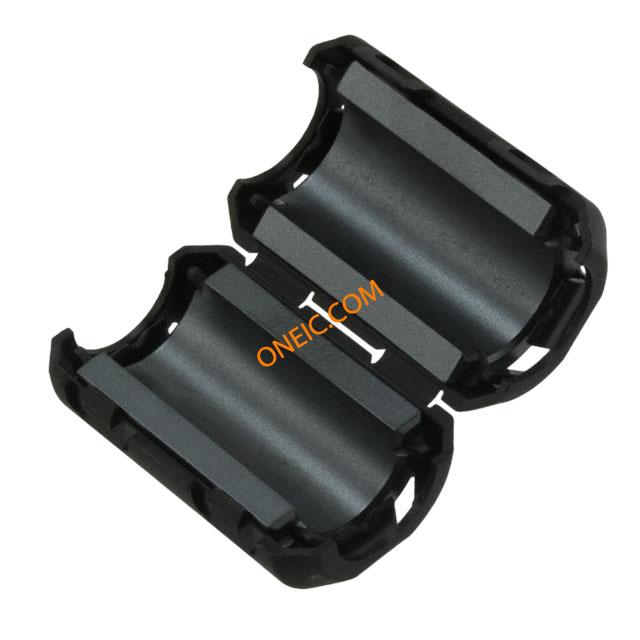

| Description | EMI/RFI Suppressors & Ferrites CLAMP-ON FILTER BLK 177 Ohms 100MHz FERRITE EMI SPLIT/SNAP-ON CORE Ferrite Clamp On Cores CLAMP-ON FILTER BLK 177 Ohms 100MHz FERRITE, CORE, 13MM, 100MHZ, 177R EMIFerriteSplitSnap-OnCore,MaxID0.512In,177Ohms@100MHz,Broadband |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Clamp-On Ferrite Suppressors | Product Category | EMI/RFI Suppressors & Ferrites |
| Standard Package | 64 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Impedance | 177 Ohms | Test Frequency | 100 MHz |
| Impedance @ Frequency | :177ohm | Impedance - Primary (Ohms) | 86Ohms |
Mechanical
| Color | BlackCase | Shape | Round |
| Length | 0.590" L (15.00mm) | Weight | 0.02489 |
| Diameter | 23.5 mm | Material | 28 |
| Packaging | Bulk | Termination | Cable |
| Core Material | 28 | Mounting Type | Free Hanging |
| Cable Diameter | 0.512" | Package / Case | 23.5 mm x 36.25 mm |

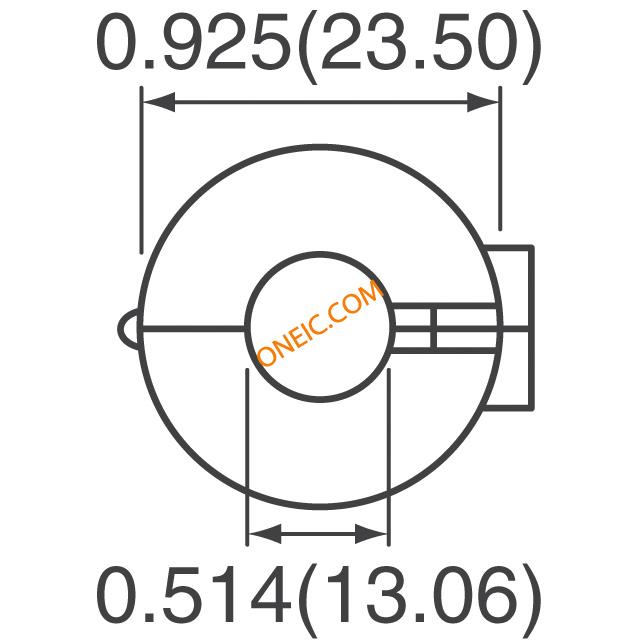

| Inner Dimension | 0.514" Dia (13.06mm) | Outer Dimension | 0.925" Dia (23.50mm) |

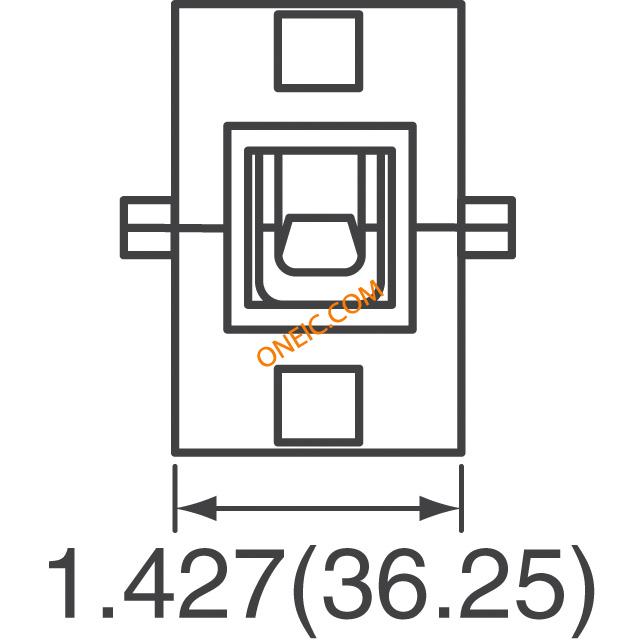

| Length - Overall | 36.25 mm | Size / Dimension | 23.5 mm Dia. x 36.25 mm L |
| Diameter - Inside | 13.06 mm | Termination Style | Cable Snap |
| Diameter - Outside, Non-Expanded | 23.5 mm | ||
Product Info
| Type | Round | Design | Hinged (Snap On) |
| Series | 28A | Features | BlackPlasticSnap-OnCase |
| Product Type | Cable Single | ||
