28A2005-0A2
| Manufacturer | |
| Description | EMI/RFI サプレッサおよびフェライト CLAMP-ON FILTER BLK 190 Ohms 100MHz FERRITE EMI SPLIT/SNAP-ON CORE Ferrite Clamp On Cores CLAMP-ON FILTER BLK 190 Ohms 100MHz EMIFerriteSplitSnap-OnCore,MaxID0.098In,190Ohms@100MHz,Broadband |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 240-2600 | Product Category | Ferrite Clamp On Cores |
| Standard Package | 1,056 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 190 Ohm | Test Frequency | 100MHz |
| Impedance @ Frequency | 190Ohms | Impedance - Primary (Ohms) | 88Ohms |
Mechanical

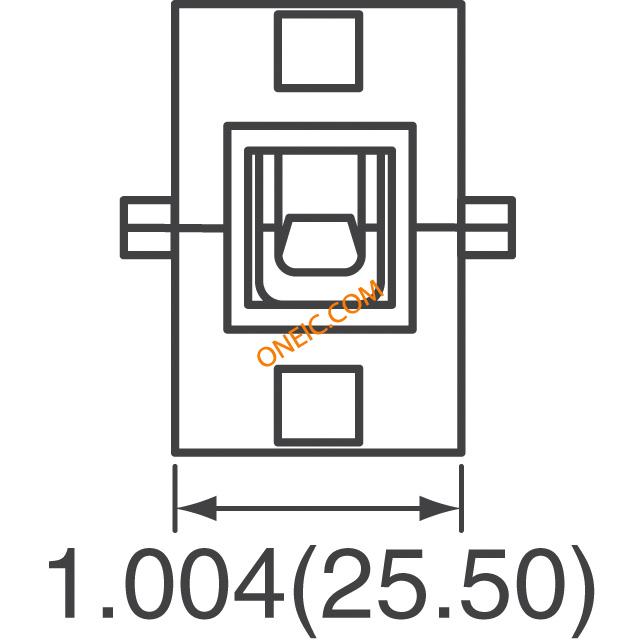

| Shape | Round | Length | 1.004" L (25.50mm) |
| Material | 28 | Packaging | Bulk |
| Termination | Cable | Core Material | 28 |
| Mounting Type | Free Hanging | Cable Diameter | 0.098" |

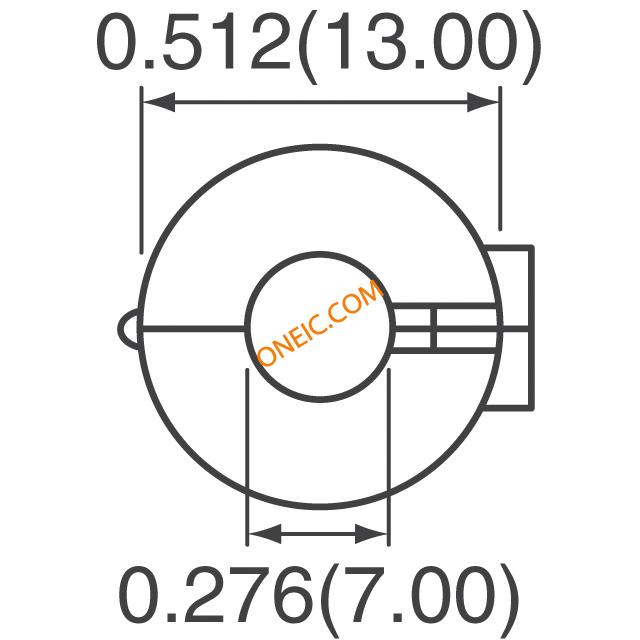

| Inner Dimension | 0.197" Dia (5.00mm) | Outer Dimension | 0.512" Dia (13.00mm) |
| Length - Overall | 25.5 mm | Diameter - Inside | 5 mm |
| Diameter - Outside, Non-Expanded | 13 mm | ||
Product Info
| Type | Round | Design | Hinged (Snap On) |
| Features | BlackPlasticSnap-OnCase | Product Type | Cable Single |
