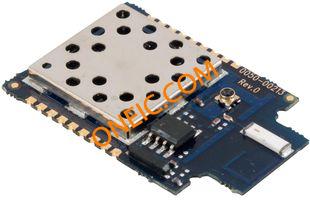

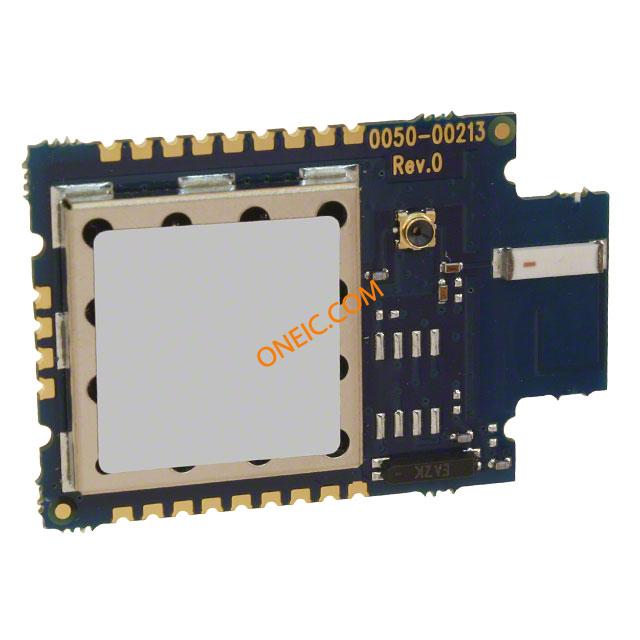

PRM211
| Manufacturer | |
| Description | RF Modules 900MHz SMT 3.3V TTL 10mW Chip Antenna TXRX 915MHZ FLEXRF INT ANT RF MOD, TXRX, 900MHZ, CHIP ANT, SMT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | FHSS Modules | Standard Package | 120 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85176200 |
Electrical
| Frequency | 902MHz ~ 928MHz | Interface | UART |
| Modulation | :FHSS | Sensitivity | -89dBm |
| Output Power | 6.3 mW | Data Interface | Solder Pad |
| Power - Output | 8dBm | Data Rate (Max) | 500kbps |
| Frequency - Max | :928MHz | Frequency - Min | :902MHz |
| Frequency Range | :902MHz to 928MHz | Current - Supply | 30 mA |
| Voltage - Supply | 2 V to 3.6 V | Current - Receiving | 30mA |
| Current - Transmitting | 47mA | Current - Supply (Main IC) | 47 mA |
| Frequency Bands (Low / High) | 902 MHz to 928 MHz | ||
Mechanical
| Weight | 0.01 | Packaging | Tray |
| Package / Case | Module | Size / Dimension | 26 mm x 33 mm x 4 mm |
| Antenna Connector | Integrated | ||
Product Info
| Applications | General Purpose | Module/Board Type | :UART |
| Modulation or Protocol | FHSS | ||
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
