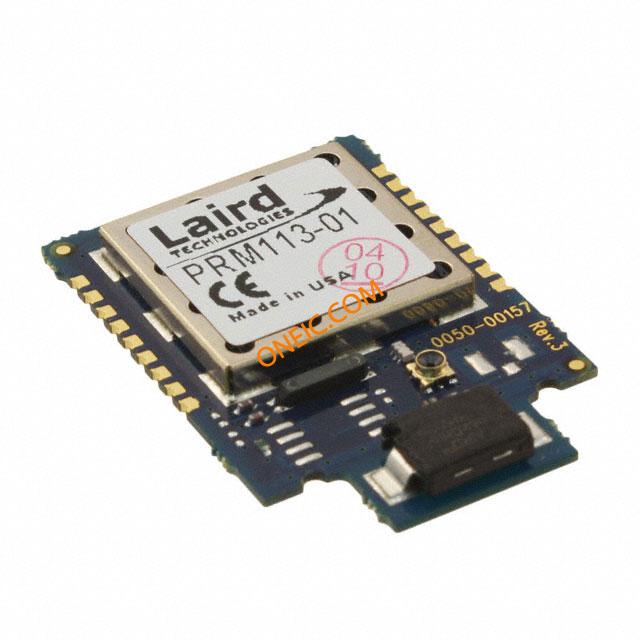

PRM113
| Manufacturer | |
| Description | RF Modules LT2510 SMT 3.3VTTL 50mW ChipAnt CE LT2510 CE APPROVED WIRELESS MODULE, FHSS, CHIP ANT, CE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | FHSS Modules | Tradename | Aerocomm |
| Other Names | PRM113-01 | Product Category | RF Modules |
| Standard Package | 30 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Frequency | 2.4GHz ~ 2.4835GHz | Interface | UART |
| Sensitivity | -98dBm | Output Power | 50 mW |
| RF Frequency | :2.483GHz | Data Interface | PCB, Surface Mount |
| Power - Output | 17dBm (50mW) | Data Rate (Max) | 500kbps |
| Frequency - Max | :2.483GHz | Frequency - Min | :2.4GHz |
| Voltage - Supply | 3.3 V | Current - Receiving | 10mA |
| Current - Transmitting | 90mA | Frequency Bands (Low / High) | 2.4 GHz to 2.4835 GHz |
Mechanical
| Weight | 0.05 | Packaging | Tray |
| Package / Case | Module | Size / Dimension | 33 mm x 26 mm x 4 mm |
| Antenna Connector | Integrated | ||
Product Info
| Applications | General Purpose | Modulation or Protocol | FHSS |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
