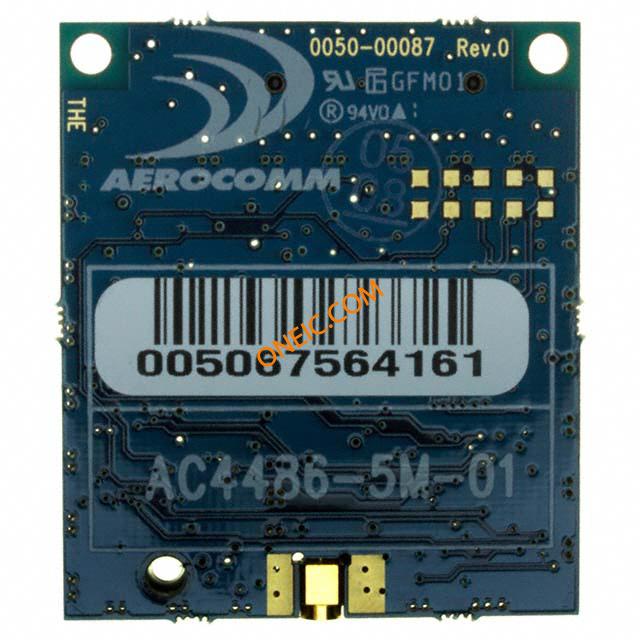

AC4486-5M
| Manufacturer | |
| Description | RF Modules 5mW Transceiver Module TXRX 868MHZ 3V TTL 5MW RS232 RF MODULE, TXRX, FSK, 868MHZ, RS232 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Radio Modules | Product Category | RF Modules |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Frequency | 869.7MHz ~ 869.65MHz | Interface | 20-pin Mini Connector |
| Sensitivity | -100dBm | Output Power | 5 mW |
| RF Frequency | :869.65MHz | Data Interface | Connector, 2 x 10 Header |
| Power - Output | 5mW | Data Rate (Max) | 115.2kbps |
| Current - Supply | 30 mA | Voltage - Supply | 3.3 V to 5.5 V |
| Current - Receiving | 40mA | Current - Transmitting | 40mA |
| Current - Supply (Main IC) | 35 mA | Frequency Bands (Low / High) | 868 MHz |
Mechanical
| Weight | 0.740753 oz | Packaging | Tray |
| Package / Case | Module | Size / Dimension | 49 mm x 42 mm x 5 mm |
| Antenna Connector | MMCX | ||
Product Info
| Applications | AMR, Gaming Devices, Inventory Tracking | Modulation or Protocol | FSK |
Environmental
| Operating Temperature | + 80 C | ||
