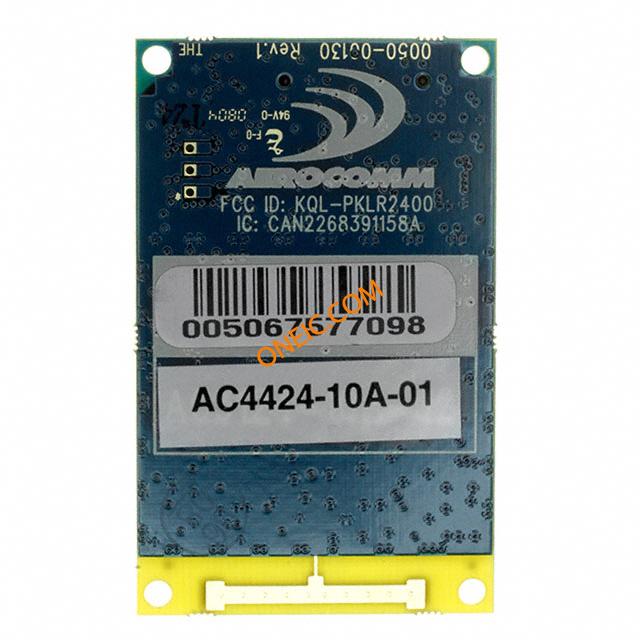

AC4424-10A
| Manufacturer | |
| Description | RF Modules TTL Ser 10mW int ant TXRX 2.4GHZ 3V/5V TTL 10MW |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Radio Modules | Product Category | RF Modules |
| Standard Package | 20 | ||
Compliance
| RoHS | No | ||
Electrical
| Frequency | 2.402GHz ~ 2.478GHz | Interface | 20-pin Mini Connector |
| Sensitivity | -90dBm | Output Power | 10 mW |
| Data Interface | Connector, 2 x 10 Header | Power - Output | 10mW |
| Data Rate (Max) | 192kbps | Current - Supply | 85 mA |
| Voltage - Supply | 5 V | Current - Receiving | 85mA |
| Current - Transmitting | 115mA | Current - Supply (Main IC) | 115 mA |
| Frequency Bands (Low / High) | 2.4 GHz | ||
Mechanical
| Package / Case | Module | Size / Dimension | 67 mm x 42 mm x 5 mm |
| Antenna Connector | MMCX | ||
Product Info
| Applications | Automotive, Home Automation, Surveillance, Telemetry | Modulation or Protocol | FHSS, FSK |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 80 C |
