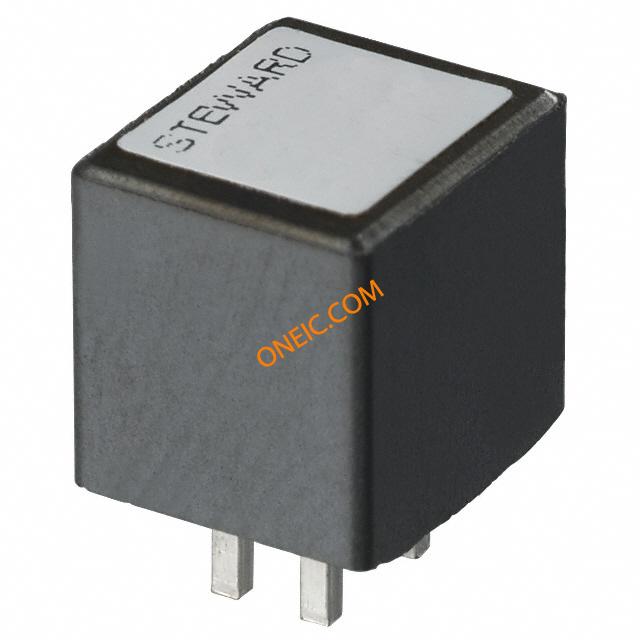

CM3440Z171B-10
| Manufacturer | |
| Description | SMD,9.8X4.7MM,5A IMAX,120 OHM,6 LINES,-55-+125,BULK,HAZMAT CHOKE ARRAY COM MODE 170 OHM PCB EMI Filter Beads, Chips & Arrays 170ohms 100MHz 20A 1 Choke Thru-hole CHOKE, COMMON, 100MHZ, SMD, 170R |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads, Common Mode | Lead Time | 79 Days |
| Subcategory | Common Mode Chokes | Product Category | EMI Filter Beads, Chips & Arrays |
| Standard Package | 182 | Factory Pack Quantity | 182 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 20A | Impedance | 170 Ohm |
| Filter Type | Power Line | Range deg/s | :(Not Available) |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 1 mOhm Max |
| Current Rating (Max) | 20 A | DC Resistance (DCR) (Max) | :0.0001ohm |
| Resistance - Initial (Ri) (Min) | 1 mOhms | ||
Mechanical
| Width | 10.03 mm | Weight | 0.123680 oz |
| Packaging | Bulk | Shielding | Unshielded |
| Height (Max) | 0.508" (12.90mm) | Mounting Type | Through Hole |
| Connector Type | :SMD | Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.395" L x 0.335" W (10.03mm x 8.51mm) | Termination Style | SMD/SMT |
| Shell Size - Insert | :3440 | Dimensions - Overall | :8.51mm x 10.03mm x 9.32mm |
Product Info
| Series | CM | Number of Lines | 2 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
