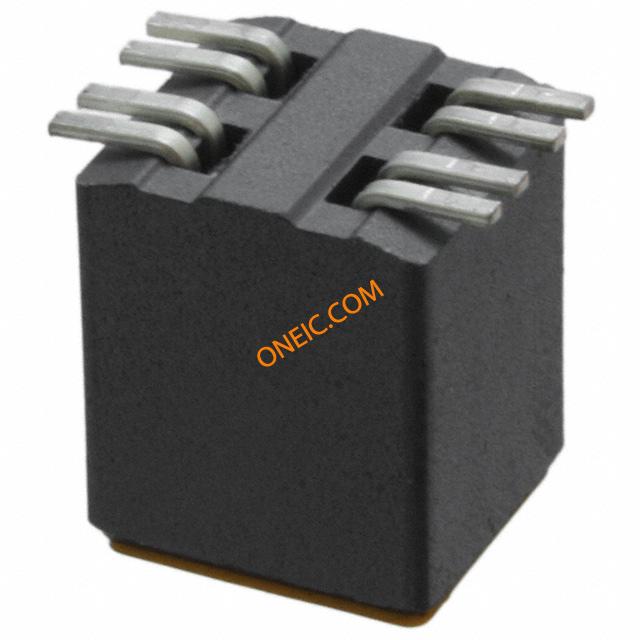

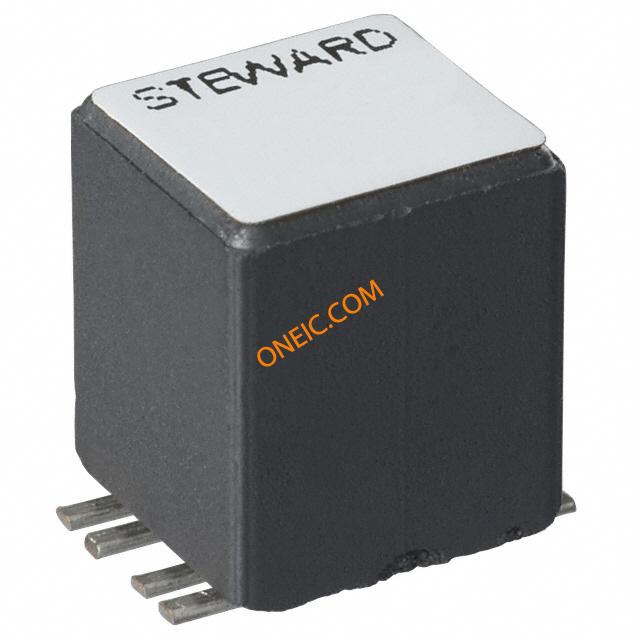

CM3032V201R-10
| Manufacturer | |
| Description | Ind Common Mode 200Ohm 8A 3032 T/R CHOKE ARRAY COM MODE 200 OHMS EMI Filter Beads, Chips & Arrays 200ohms 100MHz 8A 2 Chokes SMD CHOKE, COMMON, 100MHZ, SMD, 200R |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads, Common Mode | Lead Time | 84 Days |
| Other Names | 240-2461-1 | Subcategory | Common Mode Chokes |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 8A | Impedance | 200 Ohm |
| Filter Type | Power Line | Range deg/s | :(Not Available) |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating (Max) | 8 A | DC Resistance (DCR) (Max) | :0.1ohm |
| Resistance - Initial (Ri) (Min) | 10 mOhm | ||
Mechanical
| Depth | 10.92 mm | Width | 8.13 mm |
| Height | 10.08 mm | Weight | 0.086240 oz |
| Packaging | Tape and Reel | Shielding | Unshielded |
| Height (Max) | 0.397" (10.08mm) | Mounting Type | Surface Mount |
| Connector Type | :SMD | Package / Case | 3032 |

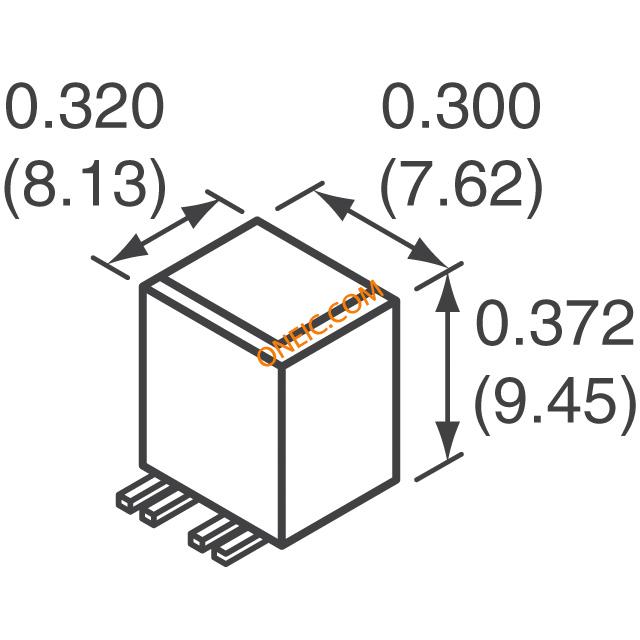

| Size / Dimension | 0.430" L x 0.300" W (10.92mm x 7.62mm) | Termination Style | SMD/SMT |
| Shell Size - Insert | :3032 | Dimensions - Overall | :7.62mm x 8.13mm x 9.45mm |
Product Info
| Type | Common Mode | Series | CM |
| Number of Lines | 4 | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
