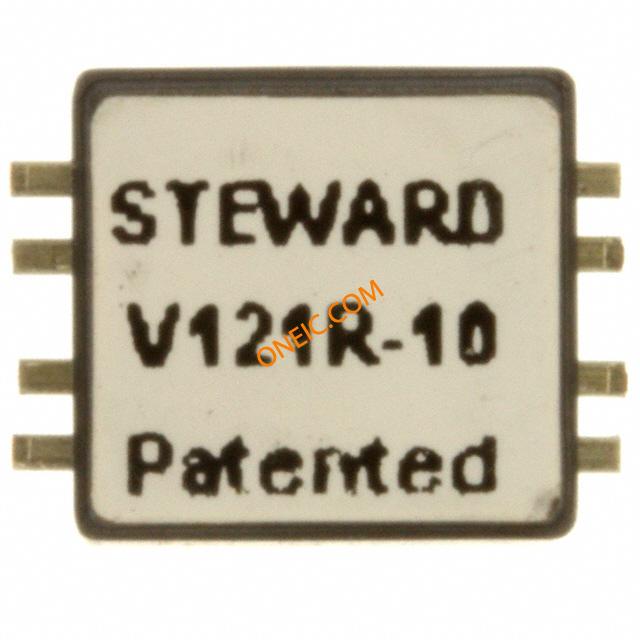

CM3032V121R-10
| Manufacturer | |
| Description | Ind Common Mode Choke 120Ohm 100MHz 8A T/R CHOKE ARRAY COM MODE 120 OHMS Common Mode Filters / Chokes 120ohms 0.01ohms 8A CHOKE, COMMON, 100MHZ, SMD, 120R |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Chokes | Lead Time | 84 Days |
| Other Names | 240-2538-2 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 8A | Impedance | 120 Ohm |
| Filter Type | Power Line | Range deg/s | :(Not Available) |
| Test Frequency | 2010 MHz | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating (Max) | 8 A | DC Resistance (DCR) (Max) | :0.1ohm |
| Resistance - Initial (Ri) (Min) | 10 mOhm | ||
Mechanical
| Depth | 7.75 mm | Width | 7.62 mm |
| Height | 6.35 mm | Weight | 0.050720 oz |
| Packaging | Tape and Reel | Height (Max) | 0.250" (6.35mm) |
| Mounting Type | Surface Mount | Connector Type | :SMD |
| Package / Case | 10.92 X 7.75 X 6.35 | Size / Dimension | 0.430" L x 0.300" W (10.92mm x 7.62mm) |
| Termination Style | SMD/SMT | Shell Size - Insert | :3032 |

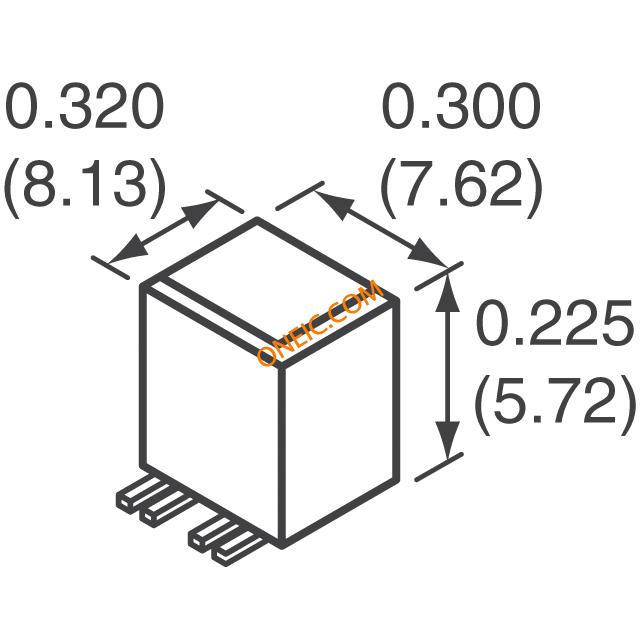

| Dimensions - Overall | :7.62mm x 8.13mm x 5.72mm | ||
Product Info
| Type | Common Mode Choke | Number of Lines | 4 |
