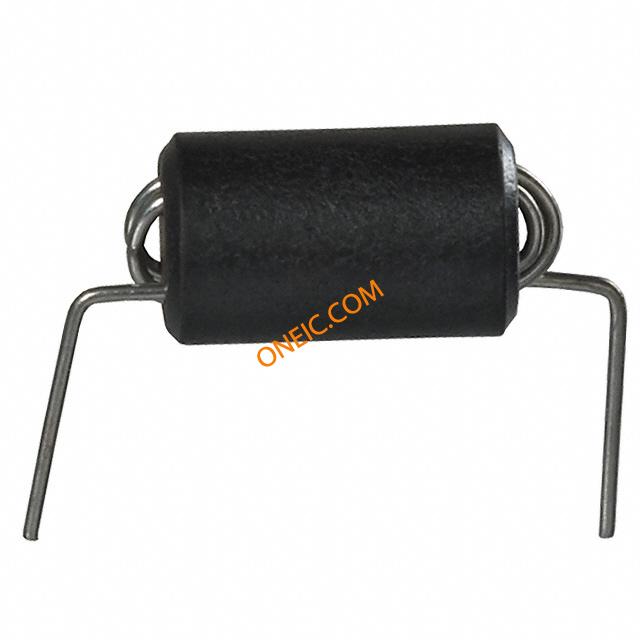

28C0236-0BS-10
| Manufacturer | |
| Description | LEADED,6X10MM,8A,835 OHM,1 LINE,-55+125,BULK,HAZMAT BEAD MULTI-TURN AXIAL 835 OHMS Ferrite Cable Cores 835ohms 100MHz 5A Thru-hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Bead Cores | Lead Time | 84 Days |
| Subcategory | Ferrite Beads | Product Category | Ferrite Cable Cores |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Impedance | 835 Ohms | Filter Type | Differential Mode - Single |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating (Max) | 5A | Impedance @ Frequency | 835 Ohm @ 100MHz |
Mechanical
| Weight | 0.043200 oz | Packaging | Bulk |
| Core Material | 28 | Mounting Type | Through Hole |

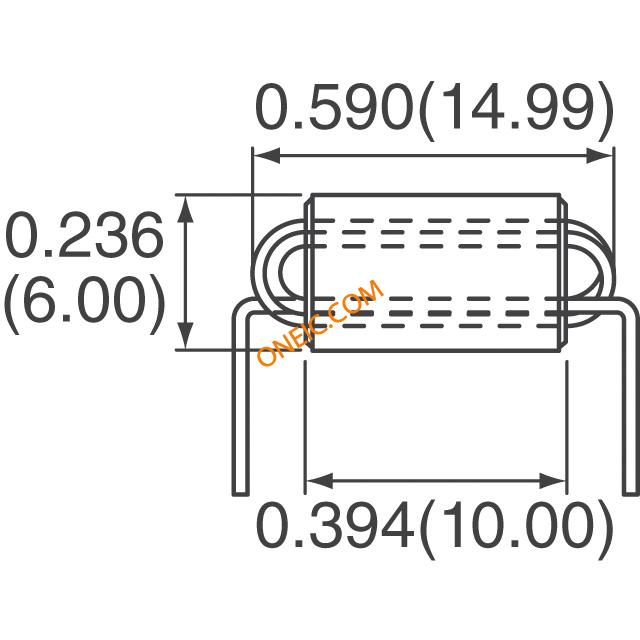

| Package / Case | Axial, Radial Bend | Size / Dimension | 0.236" Dia x 0.575" L (6.00mm x 14.61mm) |
| Diameter - Outside, Non-Expanded | 10 mm | ||
Product Info
| Type | Multiple Turn Axial Wire Ferrite Beads/Core | Product Type | Choke |
Environmental
| Operating Temperature | - C | ||
Documents & Media
PDF Document
