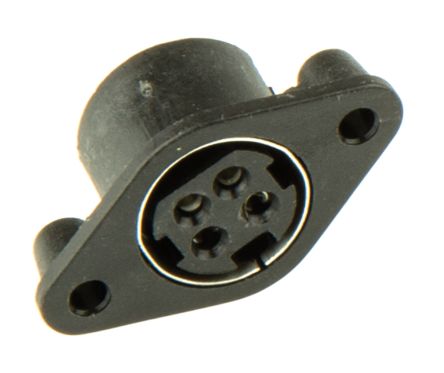

KPJX-PM-4S
| Manufacturer | |
| Description | DC Power Connectors 4 PN PANEL MT POWER MINI DIN DC Power Jacks Number of Pins: 4 Diameter: - Mounting: Panel Mount Locking: No Contact Type: Receptacle Kycon KPJX 系列 直角 面板安装 直流电源插座, 7.5A, 20 V 直流, 镀锡触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receptacles | Product Category | DC Power Connectors |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 20 V | Contact Resistance | 30 milliohms Max. |
| Voltage - Breakdown | 500V AC RMS for 1 Minute | Current Rating (Max) | 7.5 A |
| Insulation Resistance | 50 MOhms | Contact Rating (Current) | 20V DC 7.5A Max. for all Pins |
Mechanical
| Width | 14.2mm | Length | 25.2mm |
| Orientation | 直角 | Shield Type | Tin Plated |
| Size - Body | High Temperature Thermoplastic,UL94 V-0 Rated | Contact Type | Receptacle |
| Body Material | PBT UL94 V-0 Rated | Mounting Type | Right |
| Connector Type | DC Power Jack | Contact Finish | 锡 |
| Mounting Style | Panel | Number of Pins | 4 |
| Plating - Body | ABS, UL 94HB Rated | Locking Feature | No |
| Contact Material | 黄铜 | Housing Material | Polybutylene Terephthalate (PBT) |
| Shield Termination | Non-Shielded | Wire Gauge or Range - AWG | #18 for Power Wires, #24 for Signal Wire |
Product Info
| Type | Connectors & Jacks | Series | KPJX |
| Card Standard | DC Power Jack | Other Specifications | Nylon, UL 94HB Rated |
Environmental
| Detection Capability | 1000 Cycles | ||
