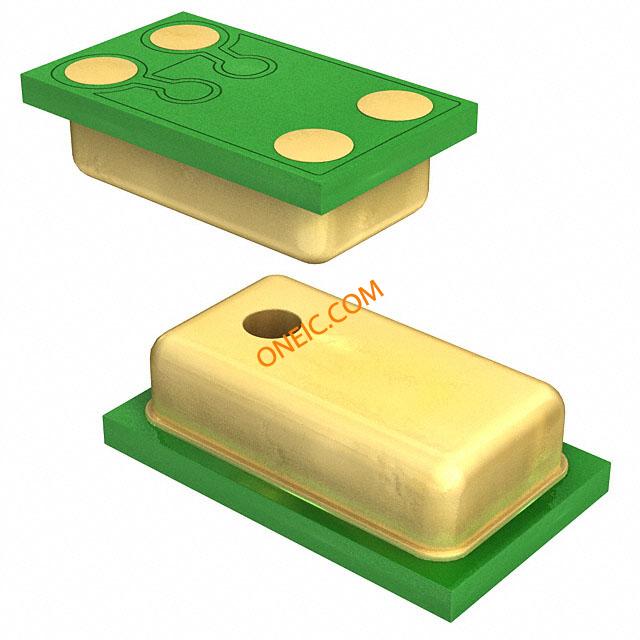

SPQ0410HR5H-B
| Manufacturer | |
| Description | MIC SISONIC SLIM ULTRAMINI RF |
对参数有疑问？问 AI 助手
Business
| Other Names | 423-1165-1 | Standard Package | 1,200 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Impedance | 400 Ohm | S/N Ratio | 59dB |
| Output Type | Analog | Sensitivity | -42dB ±3dB @ 94dB SPL |
| Voltage Rating | 1.5 ~ 3.6V | Frequency Range | 100Hz ~ 10kHz |
| Current - Output | 160µA | ||
Mechanical
| Shape | Rectangular | Packaging | Tape & Reel (TR) |
| Termination | Solder Pads | Height (Max) | 1.10mm |
| Port Location | Top | Size / Dimension | 3.76mm L x 2.24mm W |
Product Info
| Type | MEMS (Silicon) | Direction | Omnidirectional |
Environmental
| Seal Rating | None | ||
Documents & Media
PDF Document
