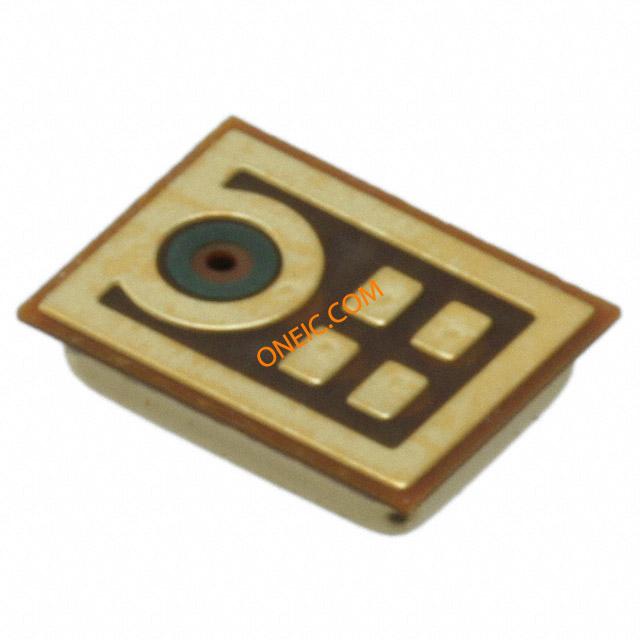

SPK0833LM4H-B
| Manufacturer | |
| Description | MIC SISONIC ZERO HIEGHT DIGITAL MEMS Microphones |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 423-1162-1 | Product Category | MEMS Microphones |
| Standard Package | 1,200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Impedance | 160 Ohms | S/N Ratio | 63dB |
| Output Type | Digital, PDM | Sensitivity | -26dB ±3dB @ 94dB SPL |
| Voltage Rating | 1.6 ~ 3.6V | Frequency Range | 100Hz ~ 10kHz |
| Current - Output | 700µA | Current Rating (Max) | 5 mA |
| Voltage - Supply (Min) | 1.6 V to 3.6 V | S/N Ratio, ADCs / DACs (db) Typ | 60.5 dB |
Mechanical
| Depth | 1 mm | Shape | Rectangular |
| Width | 3 mm | Length | 4 mm |
| Packaging | Tape & Reel (TR) | Termination | Surface Mount |
| Height (Max) | 1.10mm | Port Location | Bottom |
| Mounting Style | SMD/SMT | Size / Dimension | 4.00mm L x 3.00mm W |
| Termination Style | SMD/SMT | ||
Product Info
| Type | MEMS (Silicon) | Series | SPK |
| Direction | Omnidirectional | Technology | Microphones |
Environmental
| Seal Rating | None | Operating Temperature | - 40 C |
Documents & Media
PDF Document
