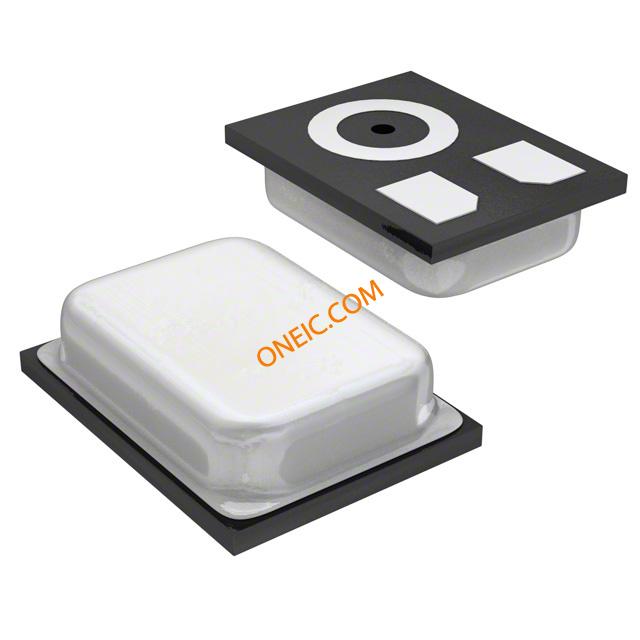

SPA2410LR5H-B
| Manufacturer | |
| Description | MIC SISONIC ZERO HIEGHT RF MEMS Microphones |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 423-1161-1 | Product Category | MEMS Microphones |
| Standard Package | 1,200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Impedance | 400 Ohm | S/N Ratio | 63dB |
| Output Type | Analog | Sensitivity | -38dB ±3dB @ 94dB SPL |
| Voltage Rating | 1.5 ~ 3.6V | Frequency Range | 100Hz ~ 15kHz |
| Current - Output | 160µA | Voltage - Supply (Min) | 1.5 V to 3.6 V |
| S/N Ratio, ADCs / DACs (db) Typ | 63 dB | ||
Mechanical
| Depth | 0.98 mm | Shape | Rectangular |
| Width | 2.5 mm | Length | 3.35 mm |
| Packaging | Tape & Reel (TR) | Termination | Surface Mount |
| Height (Max) | 1.08mm | Port Location | Bottom |
| Mounting Style | SMD/SMT | Size / Dimension | 3.35mm L x 2.50mm W |
| Termination Style | SMD/SMT | ||
Product Info
| Type | MEMS (Silicon) | Series | SPA |
| Direction | Omnidirectional | Technology | Microphones |
Environmental
| Seal Rating | None | Operating Temperature | - 40 C |
