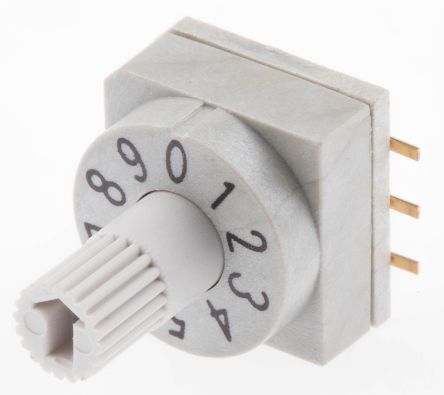

SMR61010
| Manufacturer | |
| Description | Rotary Switch, 25 mA 10-Way , 24V dc ROTARYSWITCH,SMD,BCD KNITTER-SWITCH 10位置 旋转开关, 25 mA, 24V dc -20 → +70°C |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Output | BCD | Output Type | BCD 码 |
| Voltage Rating | 24V dc | Current Rating (Max) | 25 mA @ 24 V 直流 |
| Contact Rating (Current) | 25 mA | ||
Mechanical
| Depth | 10mm | Width | 10mm |
| Height | 16.1mm | Legend Color | 黑色 |
| Hole Diameter | 2.8 x 1.2 mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Connector Type | 通孔 |
| Contact Material | Gold Plated Phosphor Bronze | Housing Material | PA6T |
| Size / Dimension | 10 x 10 x 16.1mm | Number of Positions | 10 |
| Mounting Hole Diameter | 2.8 x 1.2 mm | Material - Housing & Prism | PA6T |
Product Info
| Applications | 测试和仪器开关 | Legend (Text) | 0-9 |
| Application Specifics | Test and Instrumentation Switches | ||
Environmental
| Mechanical Life | 10000Operations | Operating Temperature | +70°C |
