SMR 14016
| Manufacturer | |

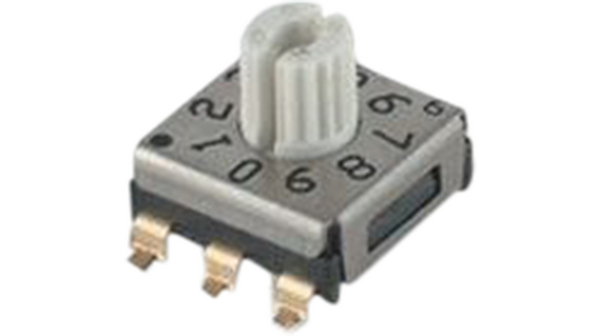

| Description | ROTARY CODED SWITCH PCB coding switch HEX 3+3, SMR 14016, Knitter-Switch |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365019 |
Electrical
| Number of Poles | :1 | Contact Resistance | :200mohm |
| Voltage - Breakdown | :250V | Current - Max/Contact | :100mA |
| Voltage - Supply (Min) | :5VDC | Contact Rating (Current) | :100mA |
| Voltage - Supply (Vcc/Vdd) | :50V | ||
Mechanical
| Weight | 0.003 | Terminal Type | :on pc board SMD |
| Angle of Throw | :22.5° | Rotation Angle | :22.5° |
| Shaft Diameter | :3.4mm | Number of Positions | :16 |
| Rotational Life (Cycles Min) | :20000 | ||
Product Info
| Series | :SMR14016 | ||
Environmental
| Operating Temperature | :75°C | ||
