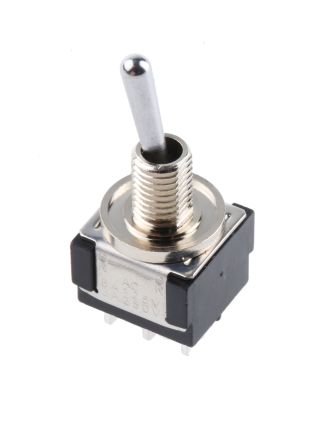

MTE206N
| Manufacturer | |
| Description | DPDT Toggle Switch On-On, 6 A @ 125 V ac, 6 A @ 6 V dc TOGGLE SWITCH, DPDT KNITTER-SWITCH 双刀双掷 切换开关, 开 - 开, 6 A@ 125 V 交流，6 A@ 6 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365019 |
Electrical
| Voltage - Core | :250V | Contact Resistance | 10mΩ |
| Voltage - Breakdown | :1000V | Current - Modulation | :3A |
| Current - Max/Contact | :6A | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | On-On | Contact Rating (Current) | 6 A @ 125 V ac, 6 A @ 6 V dc |
| Contact Rating @ Voltage | :3A | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :13mm | Width | :13mm |
| Height | :14.5mm | Length | :35.5mm |
| Weight | 0.0006 | Tab Width | :0.8mm |
| Thread Size | :M6 x 0.75 | Mounting Type | Panel Mount |
| Terminal Type | Solder | Thread Length | :6mm |
| Actuator Length | 10.5mm | Contact Material | Silver Plated Copper Alloy |
| Actuator Style/Size | :Lever | Switch Actuation Level | :Lever |
| Contact Layout, Typical | DPDT | 1st Connector Mounting Type | :Panel |
| Rotational Life (Cycles Min) | :100000 | ||
Product Info
| Series | :MTE | ||
Environmental
| Mechanical Life | 100000Operations | NEMA Frame Size | :IP67 |
| Switching Cycles | :100000 | Operating Temperature | +140°C |
