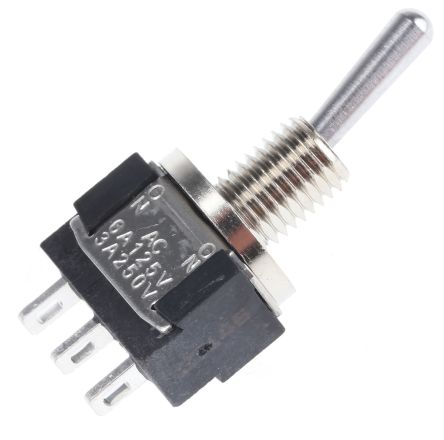

MTE106D
| Manufacturer | |
| Description | SPDT Toggle Switch On-On, 6 A @ 125 V ac, 6 A @ 6 V dc Switch Toggle ON ON SPDT Round Lever Solder Tag 6A 250VAC 30VDC Panel Mount with Threads TOGGLE SWITCH, SPDT KNITTER-SWITCH 单刀双掷 切换开关, 开 - 开, 6 A@ 125 V 交流，6 A@ 6 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365019 |
Electrical
| Voltage - Core | :250V | Contact Resistance | 10mΩ |
| Voltage - Rated AC | 250V VAC | Voltage - Breakdown | :1000V |
| Current - Modulation | :3A | Current Rating (Max) | 6 A |
| Current - Max/Contact | :6A | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | On-On | Contact Rating (Current) | 6 A @ 125 V ac, 6 A @ 6 V dc |
| Contact Rating @ Voltage | :3A | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | :8mm | Width | :13mm |
| Height | 32.5 mm | Length | :32.5mm |
| Weight | 0.004 | Tab Width | :0.8mm |
| Thread Size | :M6 x 0.75 | Mounting Type | Panel Mount |
| Terminal Type | Solder | Thread Length | :6mm |
| Contact Finish | Silver | Actuator Length | 10.5mm |
| Contact Material | Silver Plated Copper Alloy | Length - Overall | 13 mm |
| Actuator Style/Size | Lever | Switch Actuation Level | SPDT |
| Contact Layout, Typical | SPDT | 1st Connector Mounting Type | :Panel |
| Rotational Life (Cycles Min) | :100000 | ||
Product Info
| Series | :MTE | ||
Environmental
| Mechanical Life | 100000Operations | NEMA Frame Size | :IP67 |
| Switching Cycles | :100000 | Operating Temperature | +140°C |
| Operating Temperature - Junction | 140C | ||
