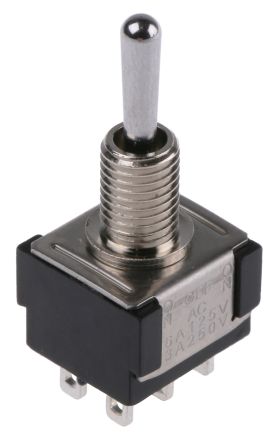

MTA206P
| Manufacturer | |
| Description | DPDT Toggle Switch On-Off-On, 6 A @ 125 V ac, 6 A @ 6 V dc Switch Toggle ON OFF ON DPDT Round Lever Solder Tag 6A 250VAC 30VDC Panel Mount with Threads KNITTER-SWITCH 双刀双掷 切换开关, 开 - 关 - 开, 6 A@ 125 V 交流，6 A@ 6 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Part Status | Active | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125 V |
| Switch Function | On-Off-On | Contact Resistance | 10mΩ |
| Voltage - Rated AC | 250V VAC | Current Rating (Max) | 6 A |
| Current Rating (Amps) | 6A (AC), 4A (DC) | Switch Function/Rating | On-Off-On |
| Contact Rating (Current) | 6 A @ 125 V ac, 6 A @ 6 V dc | Voltage - DC Spark Over (Nom) | 30V VDC |
| Illumination Voltage (Nominal) | - | ||
Mechanical
| Depth | 13 mm | Height | 32.5 mm |
| Packaging | Box | Actuator Type | Standard Round |
| Mounting Type | Panel Mount | Terminal Type | Solder |
| Bushing Thread | M6 x 0.75 | Contact Finish | Silver |
| Actuator Length | 10.5mm | Contact Material | Silver Plated Copper Alloy |
| Length - Overall | 13 mm | Actuator Material | Copper Alloy, Chrome Plated |
| Termination Style | Solder Lug | Actuator Style/Size | Lever |
| Switch Actuation Level | DPDT | Contact Layout, Typical | DPDT |
| Panel Cutout Dimensions | Circular - 6.20mm Dia | Illumination Type, Color | - |
Product Info
| Mfr | Knitter-Switch | Series | MTA |
| Features | - | Illumination | Non-Illuminated |
| Electrical Life | - | Base Product Number | MTA 206 |
Environmental
| Mechanical Life | 300000Operations | Ingress Protection | - |
| Operating Temperature | +140°C | Operating Temperature - Junction | 140C |
