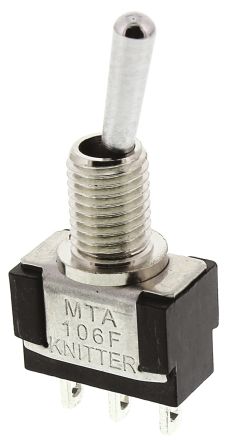

MTA106F
| Manufacturer | |
| Description | SPDT Toggle Switch Momentary-On, 6 A @ 125 V ac, 6 A @ 6 V dc Switch Toggle Mom ON SPDT Round Lever Solder Tag 6A 250VAC 30VDC Panel Mount with Threads KNITTER-SWITCH 单刀双掷 切换开关 , (On)-On, 6 A@ 125 V 交流，6 A@ 6 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Contact Resistance | 10mΩ | Voltage - Rated AC | 250V |
| Current Rating (Max) | 6 A | Switch Function/Rating | Momentary-On |
| Contact Rating (Current) | 6 A @ 125 V ac, 6 A @ 6 V dc | Voltage - DC Spark Over (Nom) | 30V |
Mechanical
| Height | 32.5 mm | Mounting Type | Panel Mount |
| Terminal Type | Solder | Contact Finish | Silver |
| Actuator Length | 10.5mm | Contact Material | Silver Plated Copper Alloy |
| Length - Overall | 13 mm | Actuator Style/Size | Lever |
| Switch Actuation Level | SPDT | Contact Layout, Typical | SPDT |
Environmental
| Mechanical Life | 300000Operations | Operating Temperature | +140°C |
| Operating Temperature - Junction | 140C | ||
