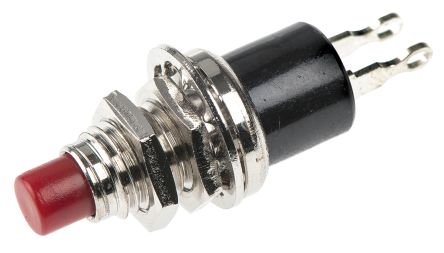

MSP101C
| Manufacturer | |
| Description | SPNO panel mount red pushbutton switch Switch Push Button N.O. Round Plunger 0.65A 30VDC Solder Tag Panel Mount PUSHBUTTON SWITCH, 1POLE P/BSWMOMN/OMSP101C KNITTER-SWITCH 红色 常开 面板安装 瞬间 微型按钮开关, 650 mA @ 30 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365019 | ||
Electrical
| Contact Resistance | :10mohm | Current Rating (Max) | 0.65 A |
| Current - Max/Contact | :100mA | Switch Function/Rating | N.O. |
| Contact Rating (Current) | 0.65 A | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Height | 26.3 mm | Length | :20.3mm |
| Weight | 0.004 | Actuator Type | Plunger |
| Mounting Type | Panel Mount | Terminal Type | Solder |
| Actuator Color | Red | Contact Finish | Silver |
| Mounting Style | Panel | Contact Material | Silver Plated Brass |
| Panel Cutout Shape | :6.2mm | Actuator Style/Size | Round Plunger |
| Color - Actuator/Cap | :Red | Switch Actuation Level | :Plunger |
| Contact Layout, Typical | :SPDT | Illumination Type, Color | Not Required |
Product Info
| Series | :MSP101C | ||
Environmental
| Seal Rating | :- | Mechanical Life | 20000 |
