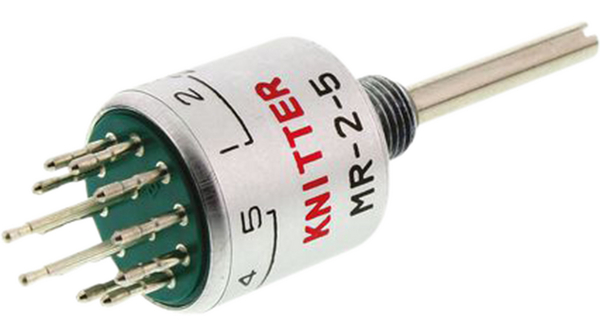

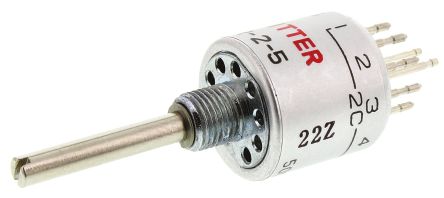

MR 2 -5
| Manufacturer | |
| Description | Rotary Switch, 0.5 A @ 24 V dc 5-Way , 24, 125V dc, V ac Rotary wafer switch 2P 5Pos, MR 2-5, Knitter-Switch KNITTER-SWITCH 5位置 旋转开关 , DP5T 触点配置, 125 V ac, 24 V dc额定电压, 0.5 A@ 24 V 直流, 6.5 x 40.8mm |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage Rating | 125 V ac, 24 V dc | Number of Poles | 2 |
| Contact Resistance | <10 mOhm | Switching Capacity | 0.5 A@ 125 VAC |
| Current Rating (Max) | 500 mA @ 24 V 直流 | Insulation Resistance | >100 |
| Contact Rating (Current) | 0.5 A @ 24 V dc | ||
Mechanical
| Height | 40.8mm | Diameter | 6.5mm |
| Step Angle | 36 ° | Mounting Type | Panel Mount |
| Terminal Type | Solder | Connector Type | 焊接 |
| Contact Material | Silver | Housing Material | 铝 |
| Size / Dimension | 6.5 x 40.8mm | Number of Contacts | 2 |
| Number of Positions | 5 | Contact Layout, Typical | DP5T |
| Material - Housing & Prism | Aluminium | ||
Product Info
| Function | Y | Applications | 测试和仪器开关 |
| Application Specifics | Test and Instrumentation Switches | ||
Environmental
| Operating Temperature | +110°C | ||
