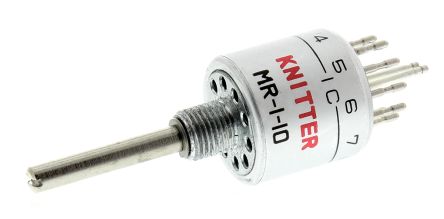

MR 1-10
| Manufacturer | |
| Description | Rotary Switch, 0.5 A @ 24 V dc 10-Way , 24, 125V dc, V ac KNITTER-SWITCH 10位置 旋转开关 , SP10T 触点配置, 125 V ac, 24 V dc额定电压, 0.5 A@ 24 V 直流, 6.5 x 40.8mm |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage Rating | 125 V ac, 24 V dc | Current Rating (Max) | 500 mA @ 24 V 直流 |
| Contact Rating (Current) | 0.5 A @ 24 V dc | ||
Mechanical
| Height | 40.8mm | Diameter | 6.5mm |
| Mounting Type | Panel Mount | Terminal Type | Solder |
| Connector Type | 焊接 | Contact Material | Silver |
| Housing Material | 铝 | Size / Dimension | 6.5 x 40.8mm |
| Number of Contacts | 1 | Number of Positions | 10 |
| Contact Layout, Typical | SP10T | Material - Housing & Prism | Aluminium |
Product Info
| Function | Y | Applications | 测试和仪器开关 |
| Application Specifics | Test and Instrumentation Switches | ||
Environmental
| Operating Temperature | +110°C | ||
