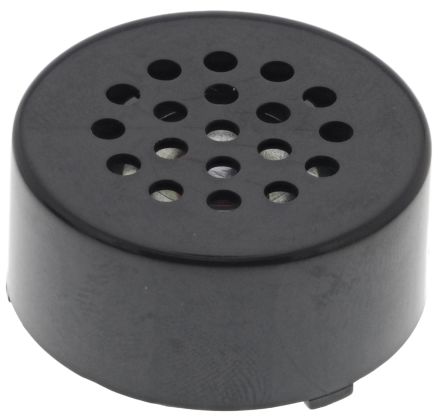

KSSG3108
| Manufacturer | |
| Description | Miniature speaker 8 Ohm 0.1W 31.8mm TRANSDUCER, SPEAKER Kingstate 8Ω 0.1W 31.8mm 微型扬声器, 5.5mm长引线 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85318095 |
Electrical
| Impedance | :8ohm | Power - Max | :0.2 W |
| Power - Rated | 0.1W | Coil Resistance | 8Ω |
| Frequency Response | :1.25kHz | Power - Average Forward | :0.1W |
| Frequency - Self Resonant | :1.25kHz | Sound Pressure Level (SPL) | 95dB |
| Distance - Control To Sensor (Max) | :10cm | ||
Mechanical
| Depth | :31.8mm | Width | :20.5mm |
| Height | 15mm | Length | :15mm |
| Weight | :10g | Diameter | 31.8mm |
| Material | :ABS UL-94 1/16" HB | Height (Max) | :15mm |
| Lead Spacing | :17.5mm | Length - Pin | :5.5mm |
| Size / Dimension | 31.8 x 15mm | Diameter - Outside | :31.8mm |
| Length - Lead Wire | 5.5mm | ||
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
Documents & Media
Online Document
