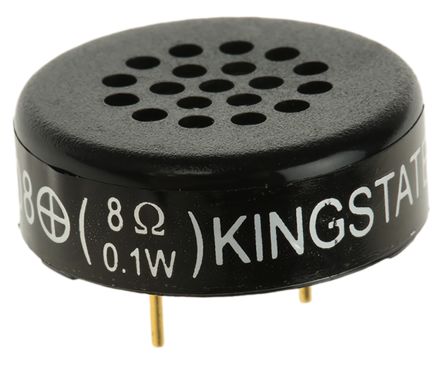

KSSG2308
| Manufacturer | |
| Description | Miniature speaker 8 Ohm 0.1W 23mm SPEAKER, MICRO, PIN, EASY MT, 88DB Kingstate 8Ω 0.1W 23mm 微型扬声器, 6.4mm长引线 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85182100 |
Electrical
| Impedance | :8ohm | Power - Rated | 0.1W |
| Coil Resistance | 8Ω | Frequency Response | :6kHz |
| Power - Average Forward | :150mW | Frequency - Self Resonant | :1.5kHz |
| Sound Pressure Level (SPL) | 88dB | ||
Mechanical
| Height | 1mm | Weight | 0.0425 |
| Diameter | 23mm | Height (Max) | :8.4mm |
| Size / Dimension | 23 x 8.4mm | Diameter - Outside | :23mm |
| Length - Lead Wire | 6.4mm | ||
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
