KSSG1708
| Manufacturer | |

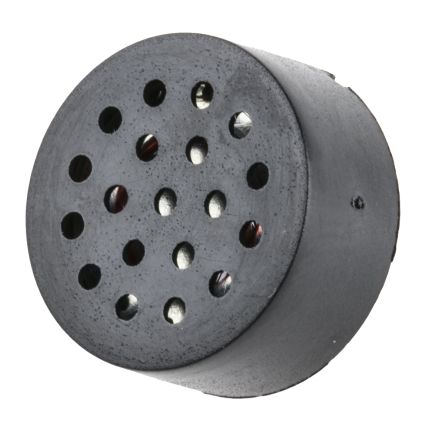

| Description | Kingstate 0.2W 5mm Miniature Speaker TRANSDUCER, SPEAKER Kingstate 8Ω 0.2W 15mm 微型扬声器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85318095 |
Electrical
| Impedance | :8ohm | Power - Max | :0.5 W |
| Power - Rated | 0.2W | Frequency Response | :1.5kHz |
| Power - Average Forward | :0.2W | Frequency - Self Resonant | :1.5kHz |
| Sound Pressure Level (SPL) | :87dB | Distance - Control To Sensor (Max) | :10cm |
Mechanical
| Depth | :17mm | Width | :8mm |
| Height | 5mm | Length | :8mm |
| Weight | :2g | Diameter | 15mm |
| Material | :PBT +20% Glass (Black) | Height (Max) | :8mm |
| Lead Spacing | :7.6mm | Length - Pin | :5.8mm |
| Size / Dimension | 15 Dia. x 5mm | Diameter - Outside | :17mm |
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
