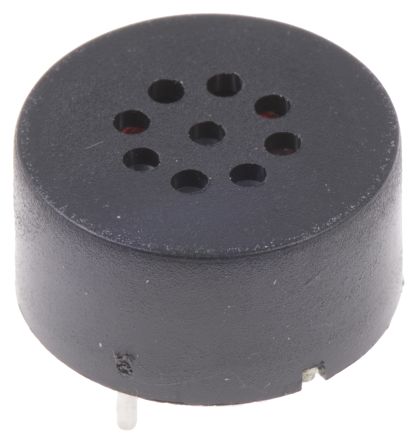

KSSG1508
| Manufacturer | |
| Description | Kingstate 0.3W 7.5mm Miniature Speaker TRANSDUCER, SPEAKER Kingstate 8Ω 0.3W 15mm 微型扬声器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85318095 |
Electrical
| Impedance | :8ohm | Power - Max | :0.5 W |
| Power - Rated | 0.3W | Frequency Response | :1.7kHz |
| Power - Average Forward | :0.3W | Frequency - Self Resonant | :1.7kHz |
| Sound Pressure Level (SPL) | 87dB | Distance - Control To Sensor (Max) | :10cm |
Mechanical
| Depth | :15mm | Width | :7.5mm |
| Height | 7.5mm | Length | :7.5mm |
| Weight | :2g | Diameter | 15mm |
| Material | :PBT +20% Glass | Height (Max) | :7.5mm |
| Lead Spacing | :7.6mm | Length - Pin | :5.8mm |
| Size / Dimension | 15 Dia. x 7.5mm | Diameter - Outside | :15mm |
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
