KDMG26008
| Manufacturer | |

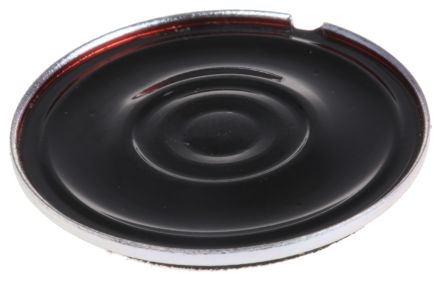

| Description | Kingstate 8Ω 0.2W 4.1mm Miniature Speaker LOUDSPEAKER, MICRO Kingstate 8Ω 0.2W 26mm 微型扬声器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85182995 |
Electrical
| Impedance | :8ohm | Power - Max | :0.3 W |
| Sensitivity | :92dB | Power - Rated | 0.2W |
| Coil Resistance | 8Ω | Frequency Response | :520Hz |
| Power - Average Forward | :0.2W | Frequency - Self Resonant | :520Hz |
| Sound Pressure Level (SPL) | 92dB | Distance - Control To Sensor (Max) | :10cm |
Mechanical
| Depth | :26mm | Width | :4.1mm |
| Height | 4.1mm | Length | :4.1mm |
| Weight | :5g | Diameter | 26mm |
| Material | :Metal | Height (Max) | :4.1mm |
| Size / Dimension | 26 x 4.1mm | Diameter - Outside | :26mm |
Product Info
| Function | :Micro Dynamic Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
