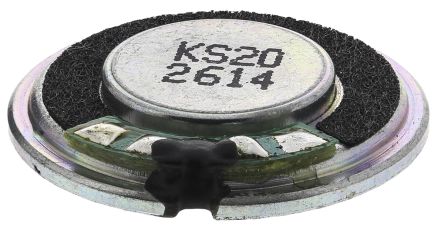

KDMG20008
| Manufacturer | |
| Description | Kingstate 8Ω 0.3W 3.1mm Miniature Speaker LOUDSPEAKER, MICRO Kingstate 8Ω 0.3W 20mm 微型扬声器 KDMG 560Hz 20MM 0,30W 8R |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85182995 |
Electrical
| Impedance | :8ohm | Power - Max | :0.5 W |
| Sensitivity | :92dB | Power - Rated | 0.3W |
| Coil Resistance | 8Ω | Frequency Response | :560Hz |
| Power - Average Forward | :0.3W | Frequency - Self Resonant | :560Hz |
| Sound Pressure Level (SPL) | 92dB | Distance - Control To Sensor (Max) | :10cm |
Mechanical
| Depth | :20mm | Width | :3.1mm |
| Height | 3.1mm | Weight | :2.3g |
| Diameter | 20mm | Material | :Metal |
| Size / Dimension | 20 x 3.1mm | Diameter - Outside | :20mm |
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
