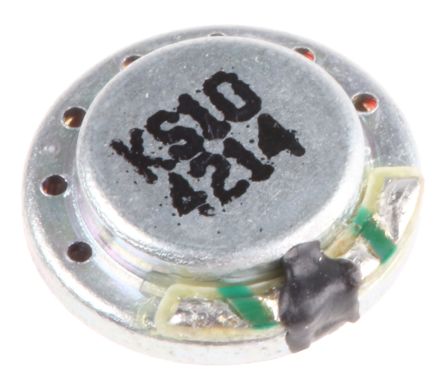

KDMG10008C-03
| Manufacturer | |
| Description | Kingstate 8Ω 0.3W 2.9mm Miniature Speaker LOUDSPEAKER, MICRO, 10MM Kingstate 8Ω 0.3W 10mm 微型扬声器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85182995 |
Electrical
| Impedance | :8ohm | Sensitivity | :86dB |
| Power - Rated | 0.3W | Coil Resistance | 8Ω |
| Frequency Response | :1200Hz | Power - Average Forward | :0.3W |
| Frequency - Self Resonant | :1.2kHz | Sound Pressure Level (SPL) | 86dB |
| Distance - Control To Sensor (Max) | :10cm | ||
Mechanical
| Depth | :2.9mm | Width | :10mm |
| Height | 2.9mm | Weight | :0.6g |
| Diameter | 10mm | Height (Max) | :2.9mm |
| Size / Dimension | 10 x 2.9mm | Diameter - Outside | :10mm |
Product Info
| Function | :Speaker | ||
Environmental
| Operating Temperature | :55°C | ||
